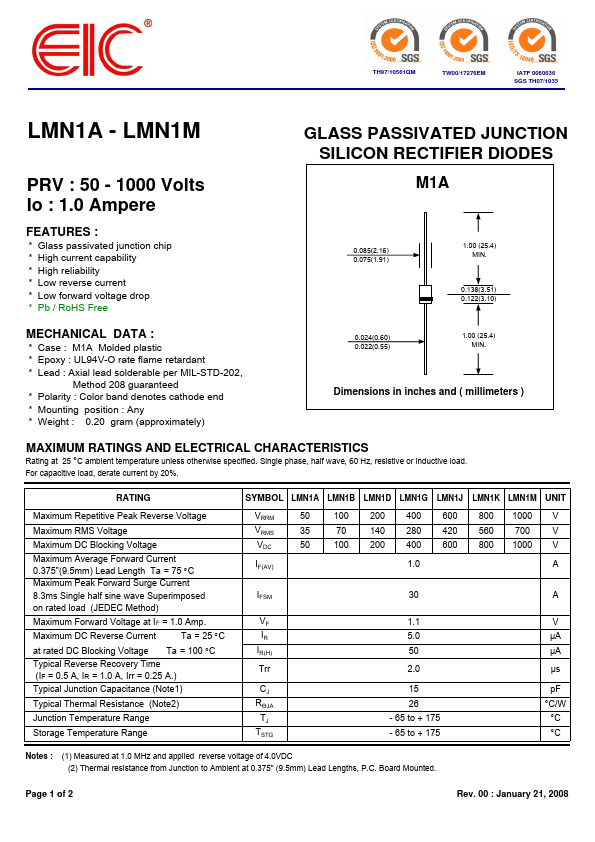

LMN1G Features
* :
* Glass passivated junction chip
* High current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free 0.085(2.16) 0.075(1.91) 1.00 (25.4) MIN. 0.138(3.51) 0.122(3.10) MECHANICAL DATA :
* Case : M1A Molded plastic
* Epoxy
Datasheet Details
LMN1G, LMN1A
EIC
103.19 KB
Silicon rectifier diodes.
This datasheet PDF includes multiple part numbers: LMN1G, LMN1A.
Please refer to the document for exact specifications by model.
