LMN1072KX7F, 20V N-Channel Enhancement Mode MOSFET

LMN1072KX7F Rev.1.0 LMN1073KX7F 20V N-Channel Enhancement Mode MOSFET .
LMN1072 KX7F, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

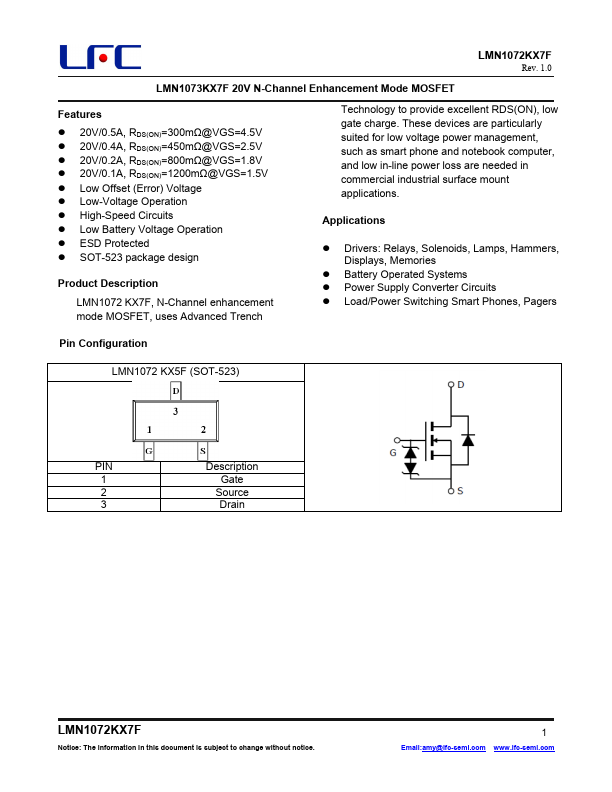

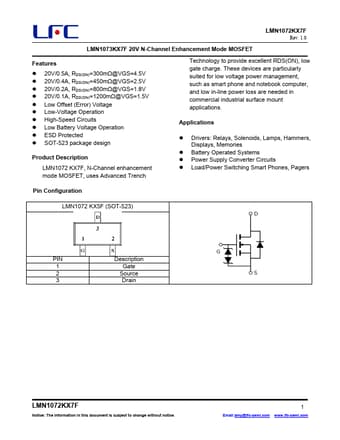

datasheet Preview Page 1 from Datasheet4u.com

LMN1072KX7F-LFCsemi.pdf

LMN1072KX7F Datasheet Preview — Preview of LMN1072KX7F PDF

Datasheet Details

Part number:

LMN1072KX7F

Manufacturer:

LFC semi

File Size:

557.00 KB

Description:

20V N-Channel Enhancement Mode MOSFET

Features

* 20V/0.5A, RDS(ON)=300mΩ@VGS=4.5V
* 20V/0.4A, RDS(ON)=450mΩ@VGS=2.5V
* 20V/0.2A, RDS(ON)=800mΩ@VGS=1.8V
* 20V/0.1A, RDS(ON)=1200mΩ@VGS=1.5V
* Low Offset (Error) Voltage
* Low-Voltage Operation
* High-Speed Circuits
* Low Battery Voltage Operation
* ESD Protected

Applications

* Applications
* Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories
* Battery Operated Systems
* Power Supply Converter Circuits
