LMN1072KTFF - 20V N-Channel Enhancement Mode MOSFET

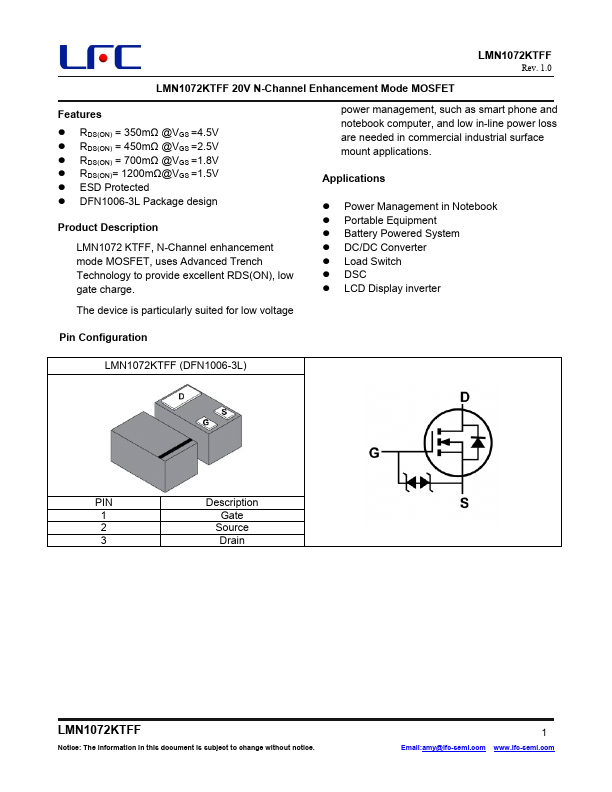

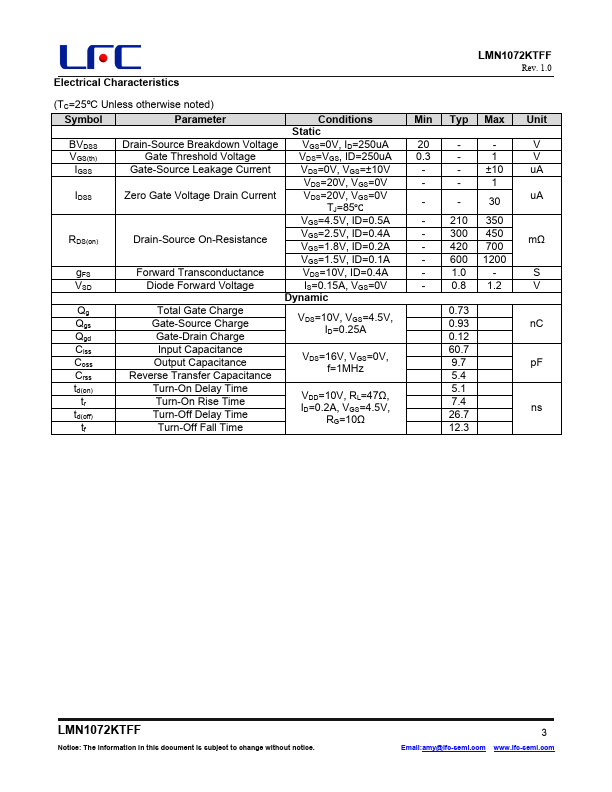

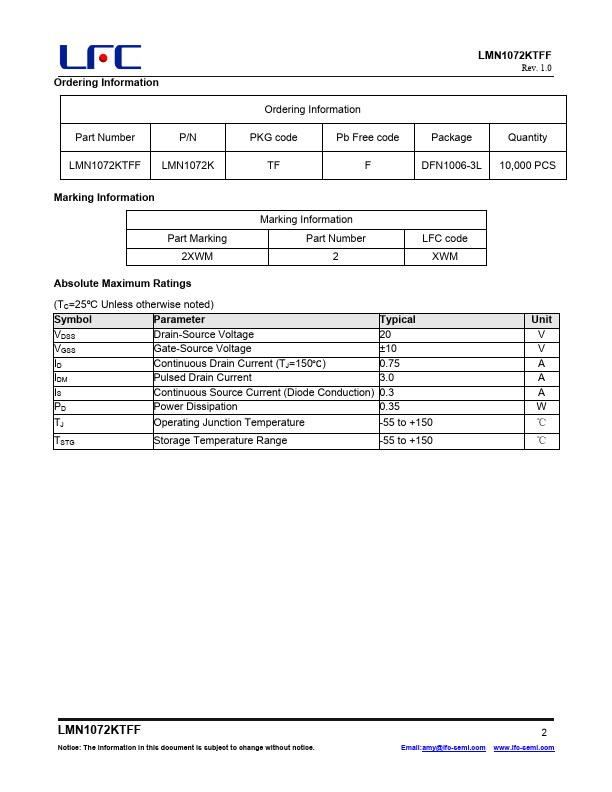

LMN1072KTFF Datasheet Preview — Preview of LMN1072KTFF PDF

Datasheet Details

Part number	LMN1072KTFF
Manufacturer	LFC semi
File Size	575.81 KB
Description	20V N-Channel Enhancement Mode MOSFET
Datasheet	LMN1072KTFF-LFCsemi.pdf

LMN1072KTFF Product details

Description

LMN1072 KTFF, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Power Management in Notebook Portable Equipment Battery Powered System DC/DC Converter Load Switch DSC LCD Display inverter The device is particularly suited for l

Features

RDS(ON) = 350mΩ @VGS =4.5V.
RDS(ON) = 450mΩ @VGS =2.5V.
RDS(ON) = 700mΩ @VGS =1.8V.
RDS(ON)= 1200mΩ@VGS =1.5V.
ESD Protected.
DFN1006-3L Package design Product.
