LMN1072KAF - 20V N-Channel Enhancement Mode MOSFET

LMN1072KAF Datasheet Preview — Preview of LMN1072KAF PDF

Datasheet Details

Part number	LMN1072KAF
Manufacturer	LFC semi
File Size	723.02 KB
Description	20V N-Channel Enhancement Mode MOSFET
Datasheet	LMN1072KAF-LFCsemi.pdf

LMN1072KAF Product details

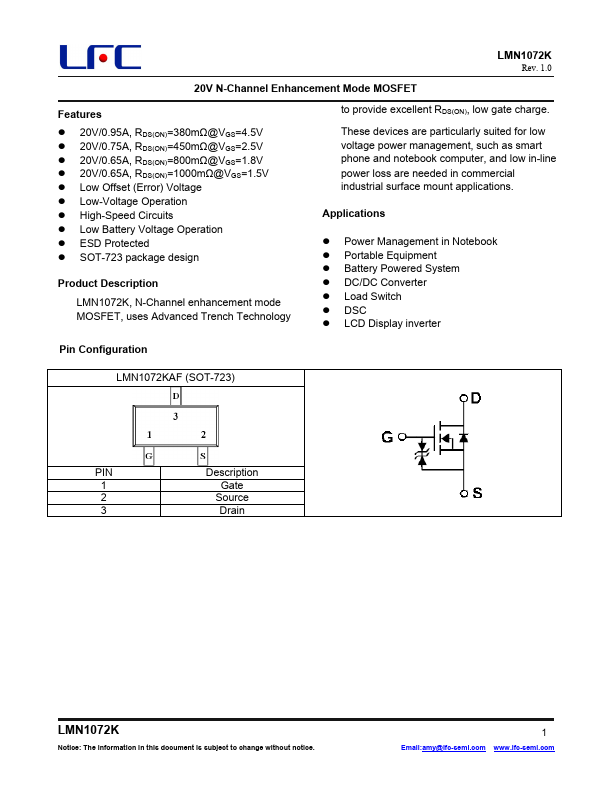

Description

LMN1072K, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.These devices are particularly suited for low voltage power management, such as smart phone and notebook computer, and low in-line power loss are needed in commercial industrial surface mount applications.Applications Power Management in Notebook Portable Equipment Battery Powered System DC/DC Converter Load Switch DSC LCD Display

Features

20V/0.95A, RDS(ON)=380mΩ@VGS=4.5V.
20V/0.75A, RDS(ON)=450mΩ@VGS=2.5V.
20V/0.65A, RDS(ON)=800mΩ@VGS=1.8V.
20V/0.65A, RDS(ON)=1000mΩ@VGS=1.5V.
Low Offset (Error) Voltage.
Low-Voltage Operation.
High-Speed Circuits.
Low Battery Voltage Operation.
ESD Protected.
SOT-723 package design Product.
