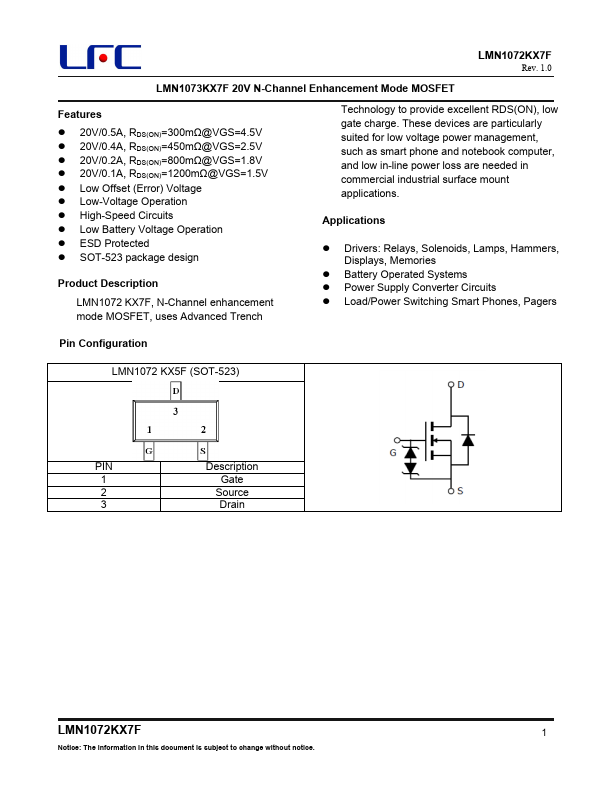

LMN1073KX7F - 20V N-Channel Enhancement Mode MOSFET

LMN1073KX7F Datasheet Preview — Preview of LMN1073KX7F PDF

Datasheet Details

Part number	LMN1073KX7F
Manufacturer	LFC semi
File Size	552.93 KB
Description	20V N-Channel Enhancement Mode MOSFET
Datasheet	LMN1073KX7F-LFCsemi.pdf

LMN1073KX7F Product details

Description

LMN1072 KX7F, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.These devices are particularly suited for low voltage power management, such as smart phone and notebook computer, and low in-line power loss are needed in commercial industrial surface mount applications.Applications Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories Battery Operated Systems Power Supply Converter Circuits Load/Pow

Features

20V/0.5A, RDS(ON)=300mΩ@VGS=4.5V.
20V/0.4A, RDS(ON)=450mΩ@VGS=2.5V.
20V/0.2A, RDS(ON)=800mΩ@VGS=1.8V.
20V/0.1A, RDS(ON)=1200mΩ@VGS=1.5V.
Low Offset (Error) Voltage.
Low-Voltage Operation.
High-Speed Circuits.
Low Battery Voltage Operation.
ESD Protected.
SOT-523 package design Product.
