LMN1D, LMN1A, SILICON RECTIFIER DIODES

TH97/10561QM TW00/17276EM IATF 0060636 SGS TH07/1033 LMN1A - LMN1M GLASS PASSIVATED JUNCTION SILICON RECTIFIER DIODES PRV : 50 - 1000 Volts M1A .

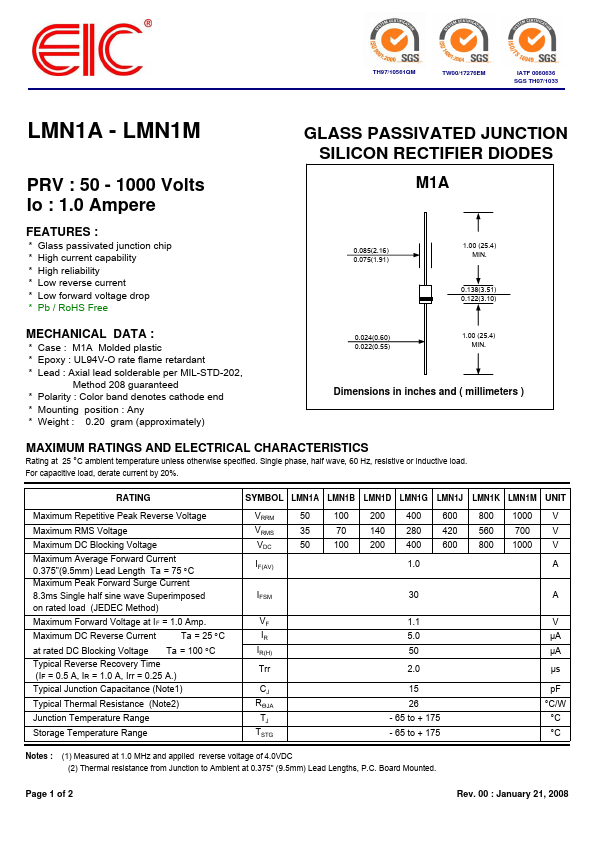

datasheet Preview Page 1 from Datasheet4u.com

LMN1A-EIC.pdf

LMN1D Datasheet Preview — This datasheet PDF includes multiple part numbers: LMN1D, LMN1A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LMN1D, LMN1A

Manufacturer:

EIC

File Size:

103.19 KB

Description:

SILICON RECTIFIER DIODES

Note:

This datasheet PDF includes multiple part numbers: LMN1D, LMN1A.
Please refer to the document for exact specifications by model.

Features

* :
* Glass passivated junction chip
* High current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free 0.085(2.16) 0.075(1.91) 1.00 (25.4) MIN. 0.138(3.51) 0.122(3.10) MECHANICAL DATA :
* Case : M1A Molded plastic
* Epoxy
