LMN1K, LMN1A - SILICON RECTIFIER DIODES

EIC

📥 Download Datasheet

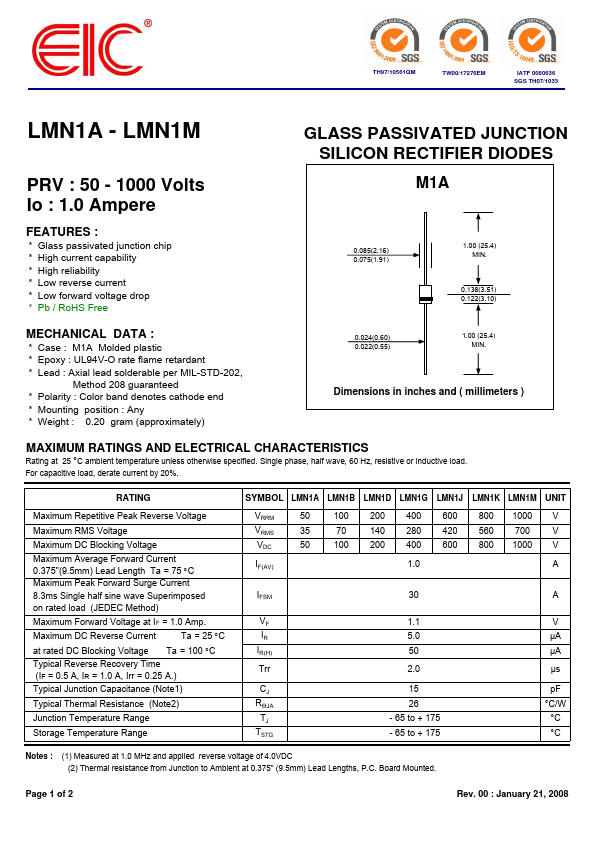

LMN1K Datasheet Preview — This datasheet PDF includes multiple part numbers: LMN1K, LMN1A. Please refer to the document for exact specifications by model.

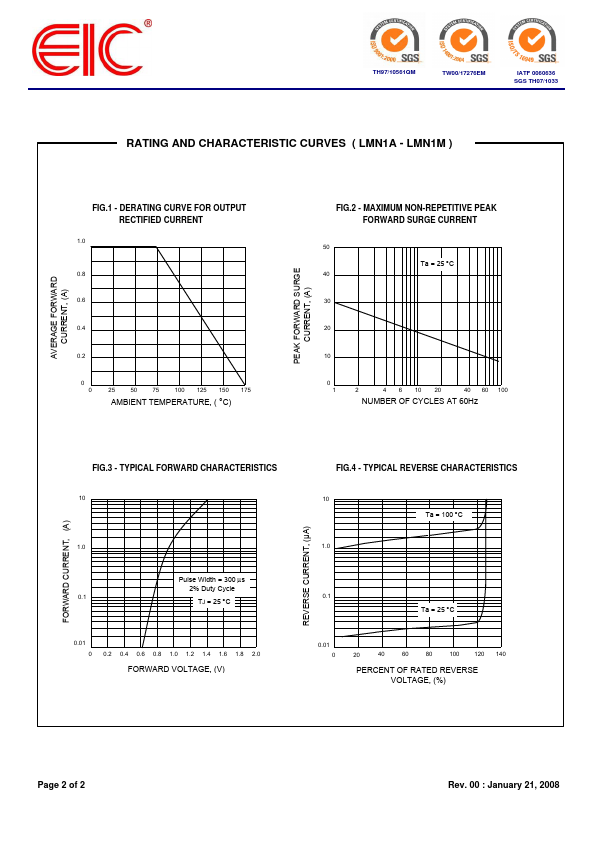

datasheet Preview Page 2

Datasheet Details

Part number	LMN1K, LMN1A
Manufacturer	EIC
File Size	103.19 KB
Description	SILICON RECTIFIER DIODES
Datasheet	LMN1A-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: LMN1K, LMN1A. Please refer to the document for exact specifications by model.

LMN1K Product details

Features

:.
Glass passivated junction chip.
High current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Pb / RoHS Free 0.085(2.16) 0.075(1.91) 1.00 (25.4) MIN. 0.138(3.51) 0.122(3.10).
