LMN3112ZF, LMN3112Z - 30V N-Channel MOSFET

LMN3112ZF Datasheet Preview — This datasheet PDF includes multiple part numbers: LMN3112ZF, LMN3112Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LMN3112ZF, LMN3112Z
Manufacturer	LFC semi
File Size	461.88 KB
Description	30V N-Channel MOSFET
Datasheet	LMN3112Z-LFCsemi.pdf
Note	This datasheet PDF includes multiple part numbers: LMN3112ZF, LMN3112Z. Please refer to the document for exact specifications by model.

LMN3112ZF Product details

Description

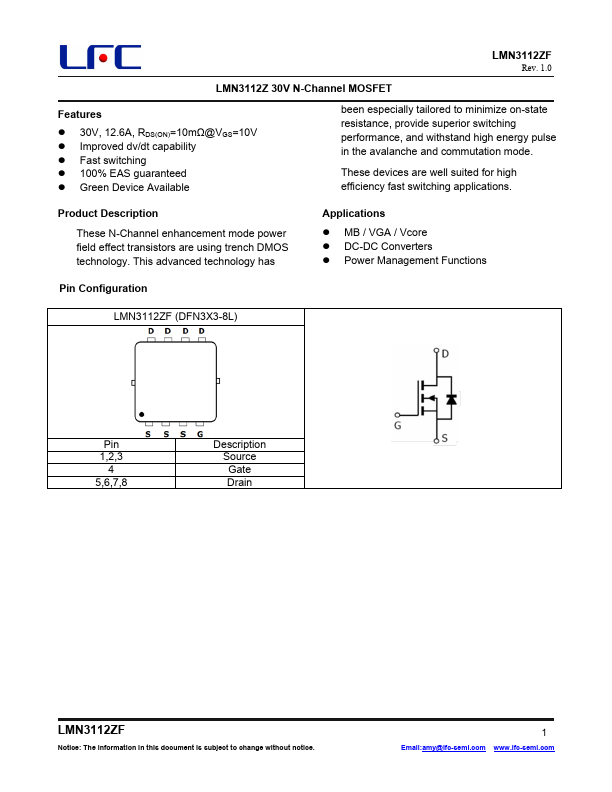

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. MB / VGA / Vcore DC-DC Converters Power Management Functions Pin Configuration LMN3112ZF (DFN3X3-8L) Pin 1,2,3 4 5,6,7,8 Description Source Gate Drain LMN3112ZF Notice: The information in this document is subject to change without notice.1 Email:amy@lfc-semi.com www.lfc-semi.com Ordering Information Part Number LMN3112ZF P/N LMN3

Features

30V, 12.6A, RDS(ON)=10mΩ@VGS=10V.
Improved dv/dt capability.
Fast switching.
100% EAS guaranteed.
Green Device Available been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching.
