LMN3112DF - 30V N-Channel MOSFET

LMN3112DF Datasheet Preview — Preview of LMN3112DF PDF

Datasheet Details

Part number	LMN3112DF
Manufacturer	LFC semi
File Size	509.23 KB
Description	30V N-Channel MOSFET
Datasheet	LMN3112DF-LFCsemi.pdf

LMN3112DF Product details

Description

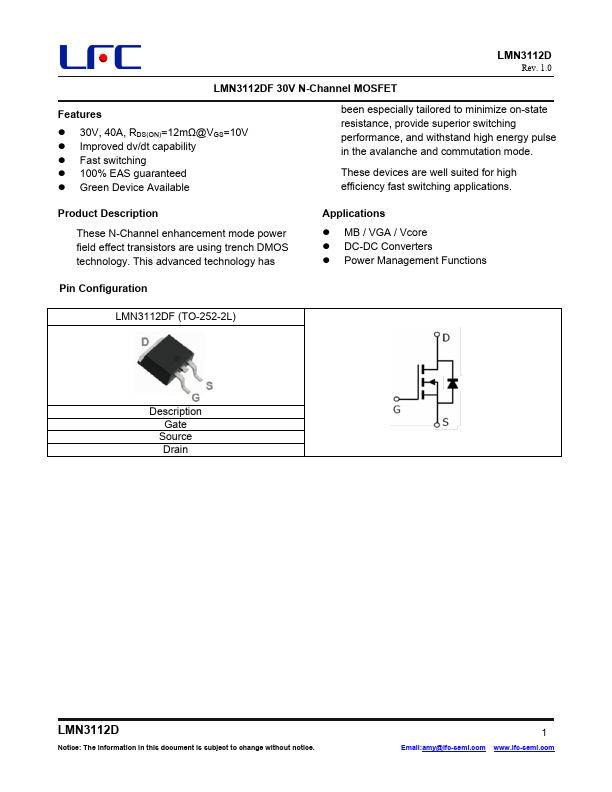

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. MB / VGA / Vcore DC-DC Converters Power Management Functions Pin Configuration LMN3112DF (TO-252-2L) Description Gate Source Drain LMN3112D Notice: The information in this document is subject to change without notice.1 Email:amy@lfc-semi.com www.lfc-semi.com Ordering Information Part Number LMN3112DF P/N LMN3112 LMN3112D Rev.1.0

Features

30V, 40A, RDS(ON)=12mΩ@VGS=10V.
Improved dv/dt capability.
Fast switching.
100% EAS guaranteed.
Green Device Available been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching.
