LMN3368ASF - 30V N-Channel Enhancement Mode MOSFET

LMN3368ASF Datasheet Preview — Preview of LMN3368ASF PDF

Datasheet Details

Part number	LMN3368ASF
Manufacturer	LFC semi
File Size	602.15 KB
Description	30V N-Channel Enhancement Mode MOSFET
Datasheet	LMN3368ASF-LFCsemi.pdf

LMN3368ASF Product details

Description

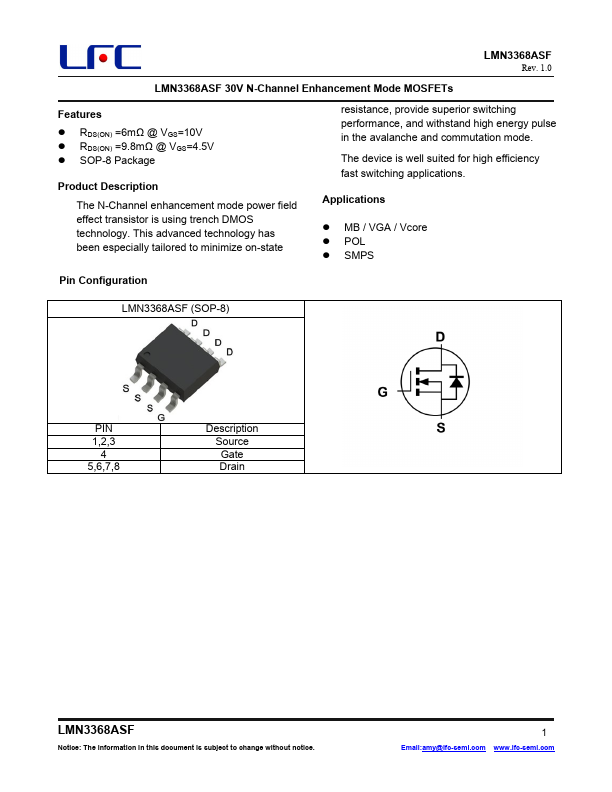

The N-Channel enhancement mode power field effect transistor is using trench DMOS technology. MB / VGA / Vcore POL SMPS Pin Configuration LMN3368ASF (SOP-8) PIN 1,2,3 4 5,6,7,8 Description So

Features

RDS(ON) =6mΩ @ VGS=10V.
RDS(ON) =9.8mΩ @ VGS=4.5V.
SOP-8 Package Product.
