LMN3760EX7F - 30V Dual N-Channel MOSFET

LMN3760EX7F Datasheet Preview — Preview of LMN3760EX7F PDF

Datasheet Details

Part number	LMN3760EX7F
Manufacturer	LFC semi
File Size	1.19 MB
Description	30V Dual N-Channel MOSFET
Datasheet	LMN3760EX7F-LFCsemi.pdf

LMN3760EX7F Product details

Description

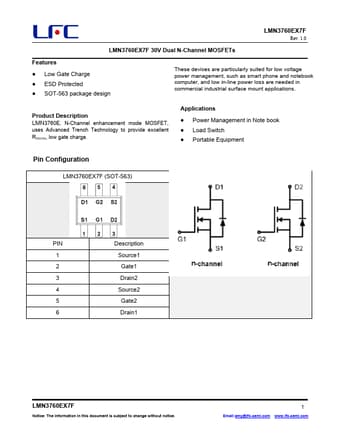

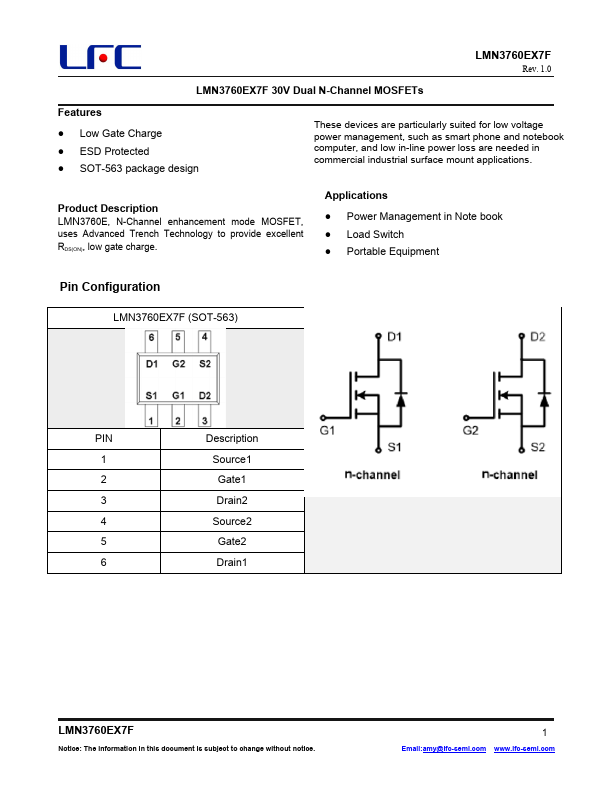

LMN3760E, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent R , DS(ON) low gate charge.Applications Power Management in Note book Load Switch Portable Equipment Pin Configuration LMN3760EX7F (SOT-563) PIN Description 1 Source1 2 Gate1 3 Drain2 4 Source2 5 Gate2 6 Drain1 LMN3760EX7F Notice: The information in this document is subject to change without notice.1 Email:amy@lfc-semi.com www.lfc-semi.com Ordering Information

Features

Low Gate Charge.
ESD Protected.
SOT-563 package design These devices are particularly suited for low voltage power management, such as smart phone and notebook computer, and low in-line power loss are needed in commercial industrial surface mount.
