LMN7002Y - 60V N-Channel Enhancement Mode MOSFET

LMN7002Y Datasheet Preview — Preview of LMN7002Y PDF

Datasheet Details

Part number	LMN7002Y
Manufacturer	LFC semi
File Size	694.60 KB
Description	60V N-Channel Enhancement Mode MOSFET
Datasheet	LMN7002Y-LFCsemi.pdf

LMN7002Y Product details

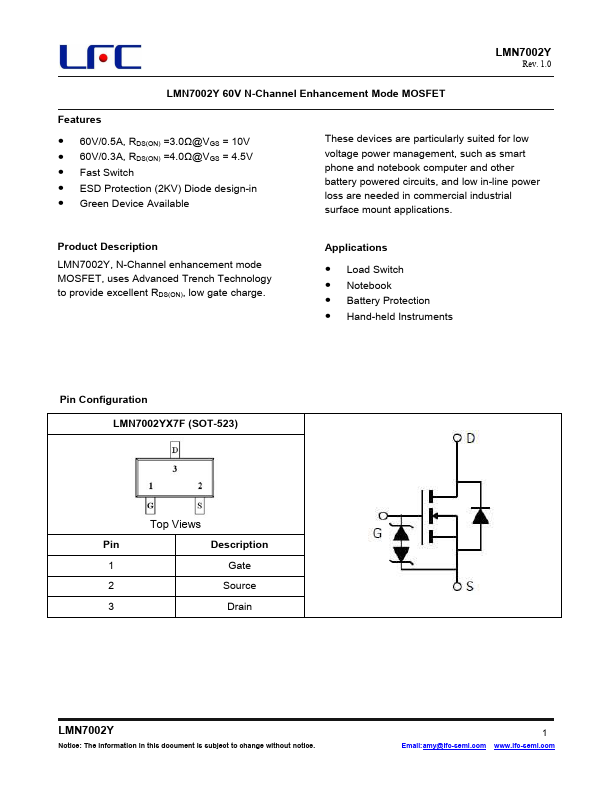

Description

LMN7002Y, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Load Switch Notebook Battery Protection Hand-held Instruments Pin Configuration LMN7002YX7F (SOT-523) Top Views Pin Description 1 Gate 2 Source 3 Drain LMN7002Y Notice: The information in this document is subject to change without notice.1 Email:amy@lfc-semi.com www.lfc-semi.com Ordering Information Part Number LMN7002YX7

Features

60V/0.5A, RDS(ON) =3.0Ω@VGS = 10V.
60V/0.3A, RDS(ON) =4.0Ω@VGS = 4.5V.
Fast Switch.
ESD Protection (2KV) Diode design-in.
Green Device Available These devices are particularly suited for low voltage power management, such as smart phone and notebook computer and other battery powered circuits, and low in-line power loss are needed in commercial industrial surface mount.
