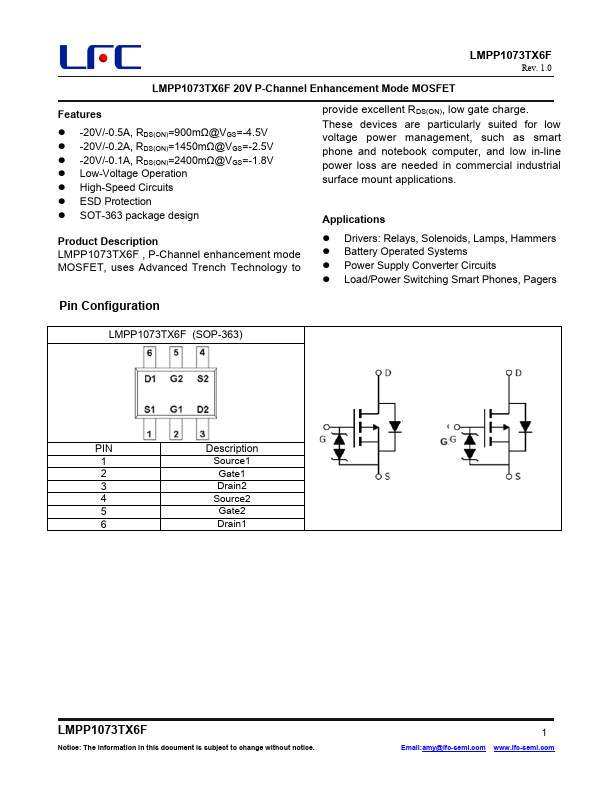

LMPP1073TX6F - 20V P-Channel Enhancement Mode MOSFET

LMPP1073TX6F Datasheet Preview — Preview of LMPP1073TX6F PDF

Datasheet Details

Part number	LMPP1073TX6F
Manufacturer	LFC semi
File Size	663.82 KB
Description	20V P-Channel Enhancement Mode MOSFET
Datasheet	LMPP1073TX6F-LFCsemi.pdf

LMPP1073TX6F Product details

Description

LMPP1073TX6F , P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.These devices are particularly suited for low voltage power management, such as smart phone and notebook computer, and low in-line power loss are needed in commercial industrial surface mount applications.Applications Drivers: Relays, Solenoids, Lamps, Hammers Battery Operated Systems Power Supply Converter Circuits Load/Power Switching Smart

Features

-20V/-0.5A, RDS(ON)=900mΩ@VGS=-4.5V.
-20V/-0.2A, RDS(ON)=1450mΩ@VGS=-2.5V.
-20V/-0.1A, RDS(ON)=2400mΩ@VGS=-1.8V.
Low-Voltage Operation.
High-Speed Circuits.
ESD Protection.
SOT-363 package design Product.
