LMPP3925EX7F, 30V P-Channel Enhancement Mode MOSFET

LMPP3925EX7F Rev.1.0 LMPP3925EX7F 30V P-Channel Enhancement Mode MOSFET .
LMPP3925EX7F , P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.

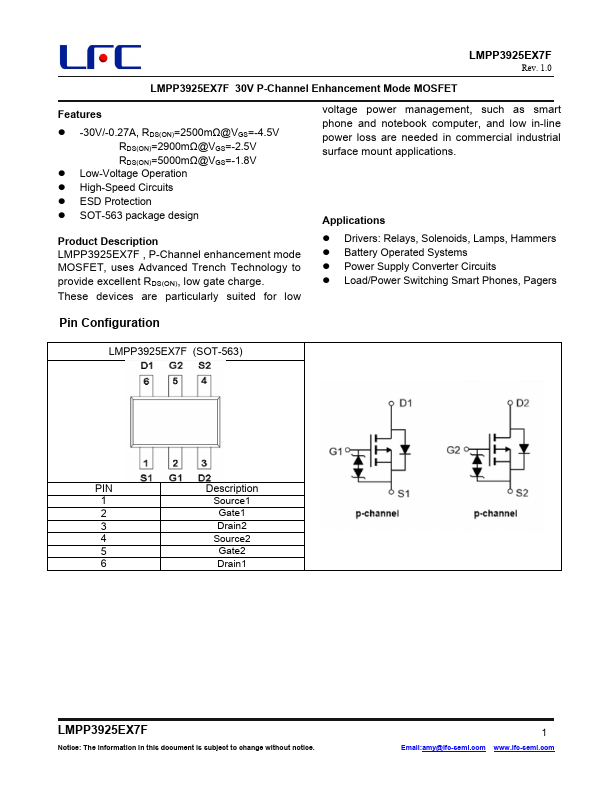

datasheet Preview Page 1 from Datasheet4u.com

LMPP3925EX7F-LFCsemi.pdf

LMPP3925EX7F Datasheet Preview — Preview of LMPP3925EX7F PDF

Datasheet Details

Part number:

LMPP3925EX7F

Manufacturer:

LFC semi

File Size:

703.23 KB

Description:

30V P-Channel Enhancement Mode MOSFET

Features

* -30V/-0.27A, RDS(ON)=2500mΩ@VGS=-4.5V RDS(ON)=2900mΩ@VGS=-2.5V RDS(ON)=5000mΩ@VGS=-1.8V
* Low-Voltage Operation
* High-Speed Circuits
* ESD Protection

Applications

* Applications
* Drivers: Relays, Solenoids, Lamps, Hammers
* Battery Operated Systems
* Power Supply Converter Circuits
