LMPP3925EX6F - 30V P-Channel Enhancement Mode MOSFET

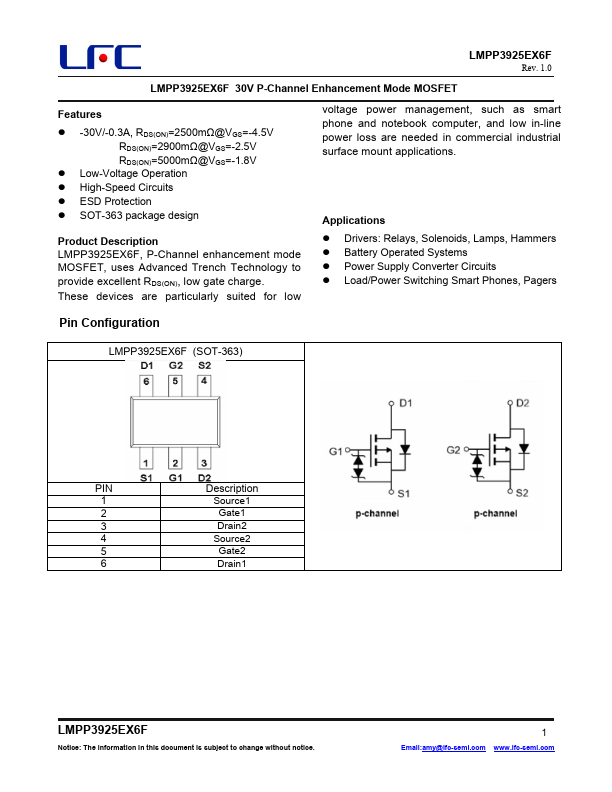

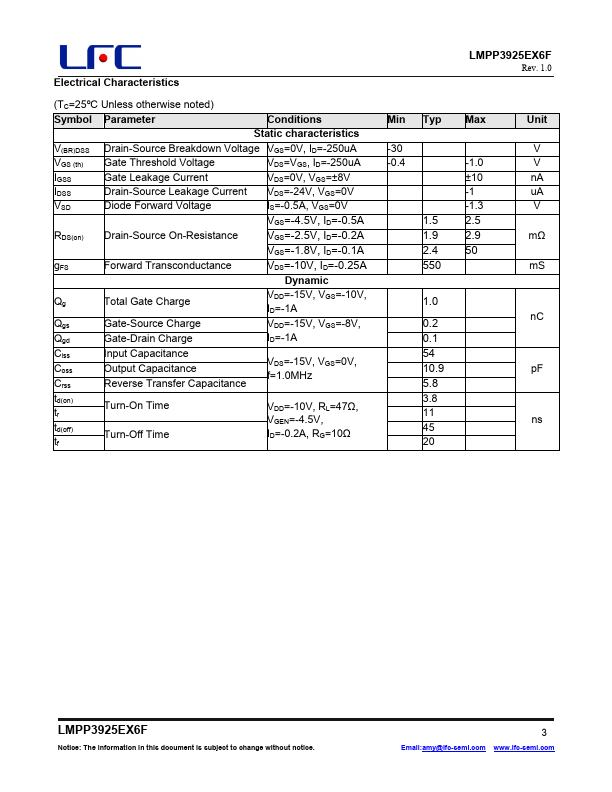

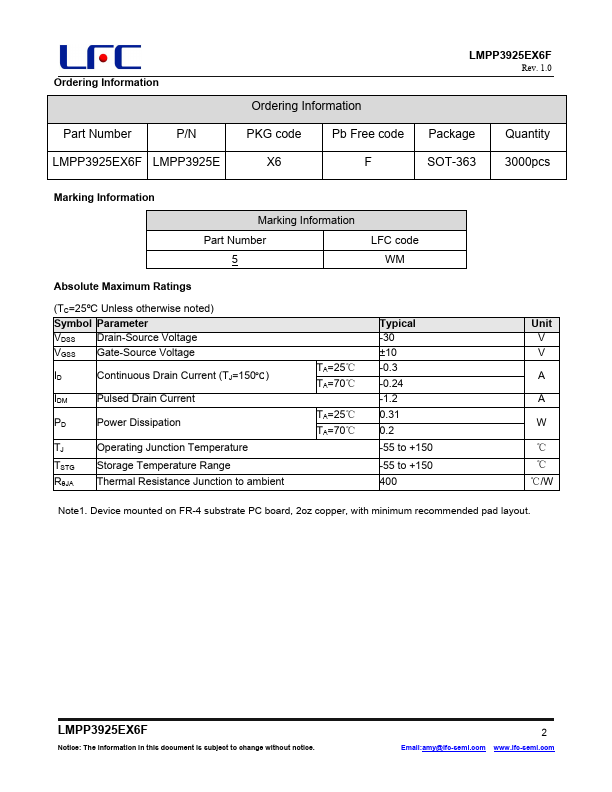

LMPP3925EX6F Datasheet Preview — Preview of LMPP3925EX6F PDF

Datasheet Details

Part number	LMPP3925EX6F
Manufacturer	LFC semi
File Size	836.02 KB
Description	30V P-Channel Enhancement Mode MOSFET
Datasheet	LMPP3925EX6F-LFCsemi.pdf

LMPP3925EX6F Product details

Description

LMPP3925EX6F, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Drivers: Relays, Solenoids, Lamps, Hammers Battery Operated Systems Power Supply Converter Circuits Load/Power Switching Smart P

Features

-30V/-0.3A, RDS(ON)=2500mΩ@VGS=-4.5V RDS(ON)=2900mΩ@VGS=-2.5V RDS(ON)=5000mΩ@VGS=-1.8V.
Low-Voltage Operation.
High-Speed Circuits.
ESD Protection.
SOT-363 package design Product.
