LP154W01-TLA1 - Liquid Crystal Display

Datasheet Summary

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 8 9 9 10 11 12 16 20 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARA

Features

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 15.4 inches diagonal 344.0 (H) × 222.0 (V) × 6.5(D, max) mm 0.25875 mm × 0.25875 mm 1280 horiz. by 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 170 cd/m2(Typ. ) , 5 point Total 5.23 Watt(Typ. ) @ LCM circuit 1.09 Watt(Typ. ), B/L input 4.14 Watt(Typ. ) 575 g (Max) Transmissive mode, normally white Anti-glare& Hard coating(3H) Ve.

📥 Download Datasheet

Datasheet preview – LP154W01-TLA1

Datasheet Details

Part number LP154W01-TLA1
Manufacturer LG
File Size 478.35 KB
Description Liquid Crystal Display
Datasheet download datasheet LP154W01-TLA1 Datasheet
Additional preview pages of the LP154W01-TLA1 datasheet.

📁 Similar Datasheet

  • LP154WE3-TLA1 - TFT LCD (ETC)
  • LP154WE3-TLB1 - TFT LCD (ETC)
  • LP1500 - 1W POWER PHEMT (Filtronic Compound Semiconductors)
  • LP1500P100 - PACKAGED 1W POWER PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT223 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT2231 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT2232 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT2233 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT89 - LOW NOISE/ HIGH LINEARITY PACKAGED PHEMT (Filtronic Compound Semiconductors)
  • LP1503VR - Surface finishing Metal and Wood (FLEX)
Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

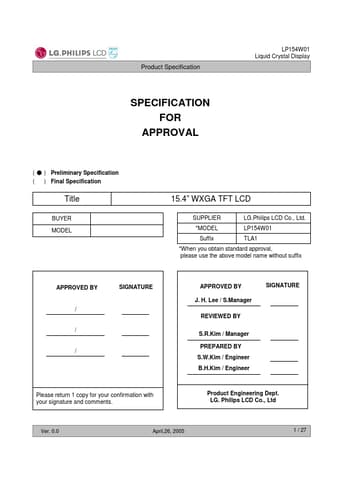

LP154W01 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ● ) Preliminary Specification ( ) Final Specification Title BUYER MODEL 15.4” WXGA TFT LCD SUPPLIER *MODEL Suffix www.DataSheet.net/ LG.Philips LCD Co., Ltd. LP154W01 TLA1 *When you obtain standard approval, please use the above model name without suffix APPROVED BY SIGNATURE APPROVED BY J. H. Lee / S.Manager SIGNATURE / REVIEWED BY / S.R.Kim / Manager PREPARED BY S.W.Kim / Engineer B.H.Kim / Engineer / Please return 1 copy for your confirmation with your signature and comments. Product Engineering Dept. LG. Philips LCD Co., Ltd Ver. 0.0 April,26, 2005 1 / 27 Datasheet pdf - http://www.DataSheet4U.co.
