LP154WP1-TLD1 Datasheet - LG

LP154WP1-TLD1 Liquid Crystal Display

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS LVDS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 8 9 11 11 12 13 14 17 24 COLOR INPUT DATA REFERNECE POWER SEQUENCE O.

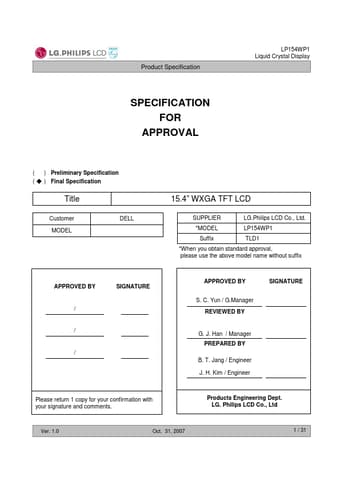

LP154WP1 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ) Final Specification Title Customer MODEL DELL 15.4” WXGA TFT LCD SUPPLIER MODEL Suffix www.DataSheet.net/ LG.Philips LCD Co., Ltd. LP154WP1 TLD1 When you obtain standard approval, please use the above model name without suffix APPROVED BY APPROVED BY SIGNATURE S. C. Yun / G.Manager / REVIEWED BY SIGNATURE / G. J. Han / Manager PREPARED BY / B. T. Jang /.

LP154WP1-TLD1 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 15.4 inches diagonal 344.0 (H) × 222.0 (V) × 6.4(D, max) mm 0.2301 mm × 0.2301 mm 1440 horiz. by 900 vert. Pixels RGB strip arrange
