DFR0.3A

Surface Mount Fast Recovery Rectifiers

DFR0.3A Features

* Low profile space

* Ideal for automated placement

* Glass passivated chip junctions

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* High temperature soldering： 260℃/10 seconds at terminals

* Component in accordance to RoHS 2002/95/

DFR0.3A Datasheet (62.74 KB)

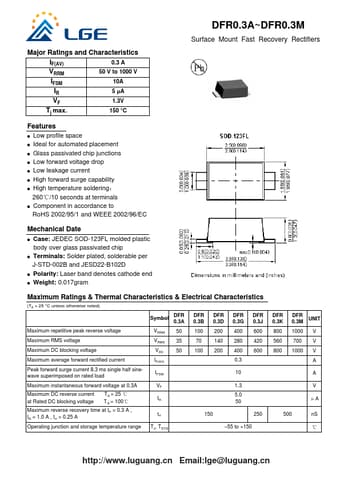

Preview of DFR0.3A PDF

Datasheet Details

Part number:

DFR0.3A

Manufacturer:

LGE

File Size:

62.74 KB

Description:

Surface mount fast recovery rectifiers.
Major Ratings and Characteristics IF(AV) 0.3 A VRRM 50 V to 1000 V IFSM IR 10A 5 μA VF 1.3V Tj max. 150 °C DFR0.3A~DFR0.3M Surface Mount Fas.
