DFR0.3G, DFR0.3A Datasheet - LGE

DFR0.3G, DFR0.3A, Surface Mount Fast Recovery Rectifiers

Major Ratings and Characteristics IF(AV) 0.3 A VRRM 50 V to 1000 V IFSM IR 10A 5 μA VF 1.3V Tj max.150 °C DFR0.3A~DFR0.3M Surface Mount Fas.

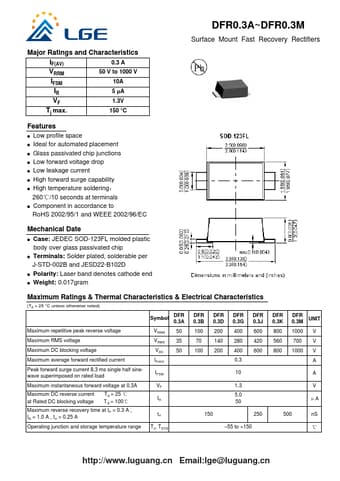

datasheet Preview Page 1 from Datasheet4u.com

DFR0.3A-LGE.pdf

DFR0.3G Datasheet Preview — This datasheet PDF includes multiple part numbers: DFR0.3G, DFR0.3A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DFR0.3G, DFR0.3A

Manufacturer:

LGE

File Size:

62.74 KB

Description:

Surface Mount Fast Recovery Rectifiers

Note:

This datasheet PDF includes multiple part numbers: DFR0.3G, DFR0.3A.
Please refer to the document for exact specifications by model.

Features

* Low profile space
* Ideal for automated placement
* Glass passivated chip junctions
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* High temperature soldering： 260℃/10 seconds at terminals
* Component in accordance to RoHS 2002/95/
