LTV-172A Photocoupler

LTV-172A Description

Photocoupler Product Data Sheet LTV-172A Spec No.:DS70-2019-0237 Effective Date: 05/06/2022 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON T.
The LITEON LTV-172A consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a SOP4 package, which is s.

LTV-172A Features

* Normally open (1-form-A)
* Operating temperature range: 110oC(max)
* Trigger LED current: 3 mA (max)
* Isolation voltage: 3750 Vrms (min)
* OFF-state output terminal voltage : 60V (min)
* ON-state current : 500mA (max)
* ON-state resistance : 2Ω (max)
* Halogen free

LTV-172A Applications

* Battery Management System (BMS)
* Factory Automation (FA)
* Security Systems
* Measuring Instruments
* Smart Meters
* Mechanical relay replacements 1.2 Functional Diagram 1/10 Part No. :LTV-172A series BNC-OD-FC002/A4 Rev. : A 2. PACKAGE DIMENSIONS 2.1 LTV-172A series Ph

📥 Download Datasheet

Preview of LTV-172A PDF

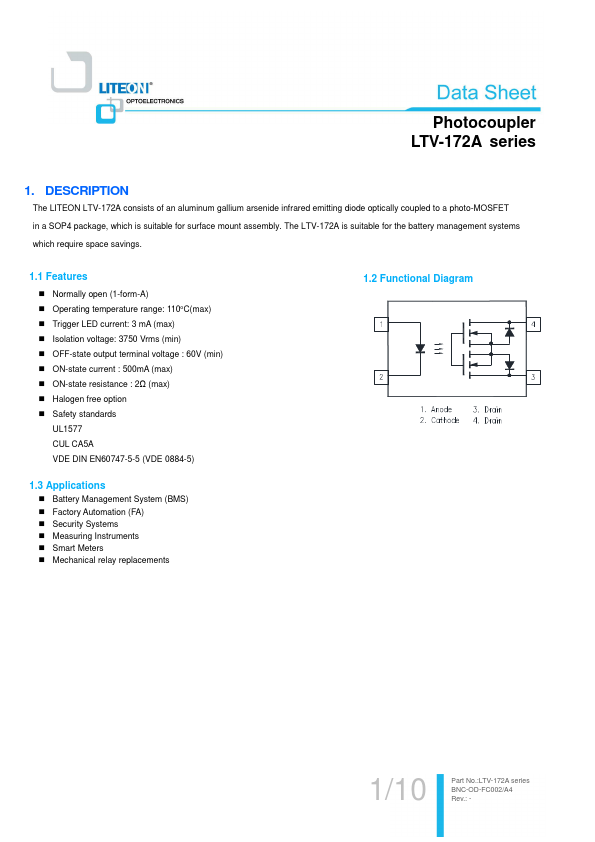

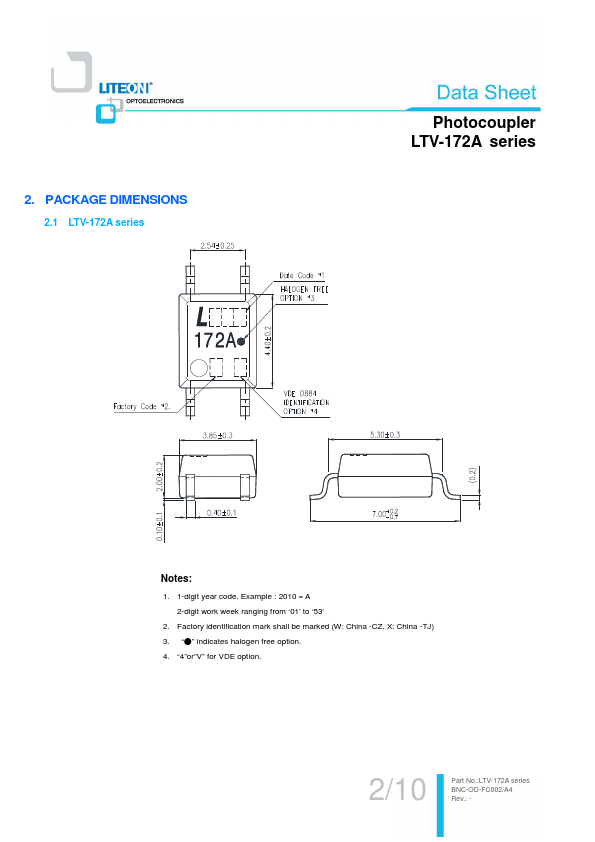

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTV-172A
Manufacturer
LITE-ON
File Size
385.83 KB
Datasheet
LTV-172A-LITEON.pdf
Description
Photocoupler
