LTV-340 Datasheet - LITE-ON

LTV-340 Photocoupler

The LTV-340 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system. It contains an AlGaAs LED optically coupled to an integrated circuit with a power output stage. The Photocoupler operational paramet.

LTV-340 Features

* 1.0 A maximum peak output current 0.8 A minimum peak output current Rail-to-rail output voltage Functional Diagram Pin No. and Internal connection diagram 6 5 4 200 ns maximum propagation delay 100 ns maximum propagation delay difference Under Voltage Lock-Out protection (UVLO) with hysteresis

LTV-340-LITEON.pdf

Preview of LTV-340 PDF

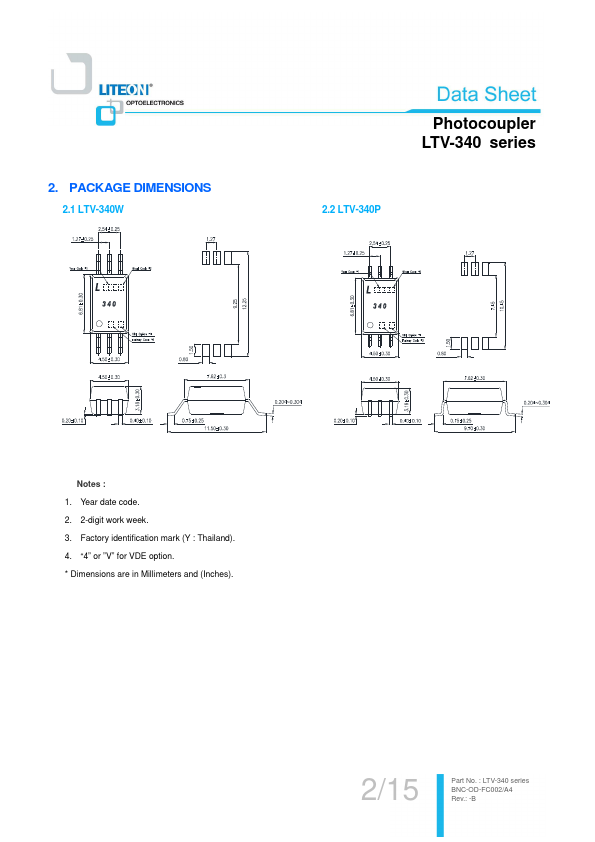

LTV-340 Datasheet Preview Page 2 LTV-340 Datasheet Preview Page 3

Datasheet Details

Part number:

LTV-340

Manufacturer:

LITE-ON

File Size:

409.20 KB

Description:

Photocoupler.
