LTV-340P, LTV-340 Photocoupler

LITE-ON

Description

Photocoupler Product Data Sheet LTV-340 series Spec No.:DS70-2016-0053 Effective Date: 01/18/2018 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 LIT.
The LTV-340 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in pow.

📥 Download Datasheet

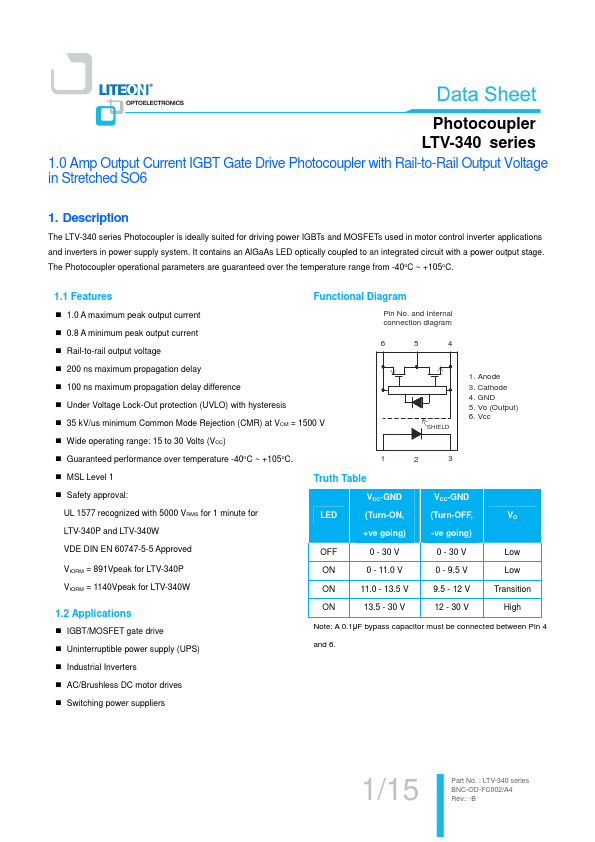

LTV-340P Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-340P, LTV-340. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTV-340P, LTV-340
Manufacturer: LITE-ON
File Size: 409.20 KB
Datasheet: LTV-340-LITEON.pdf
Description: Photocoupler
Note: This datasheet PDF includes multiple part numbers: LTV-340P, LTV-340.
Please refer to the document for exact specifications by model.

Features

* 1.0 A maximum peak output current 0.8 A minimum peak output current Rail-to-rail output voltage Functional Diagram Pin No. and Internal connection diagram 6 5 4 200 ns maximum propagation delay 100 ns maximum propagation delay difference Under Voltage Lock-Out protection (UVLO) with hysteresis
