LTV-3150M-L, LTV-3150-L - Photocouplers

LITEON

📥 Download Datasheet

LTV-3150M-L Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-3150M-L, LTV-3150-L. Please refer to the document for exact specifications by model.

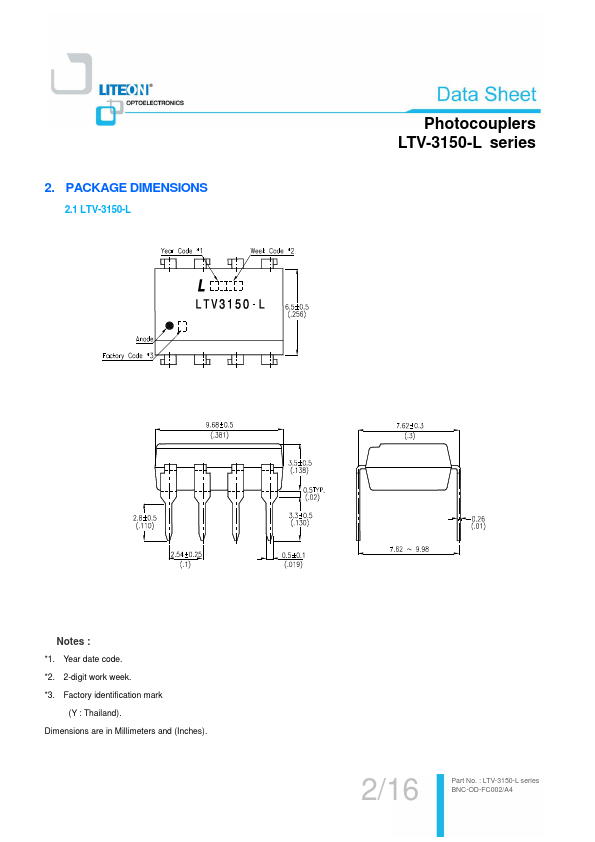

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTV-3150M-L, LTV-3150-L
Manufacturer	LITEON ↗
File Size	1.49 MB
Description	Photocouplers
Datasheet	LTV-3150-L-LITEON.pdf
Note	This datasheet PDF includes multiple part numbers: LTV-3150M-L, LTV-3150-L. Please refer to the document for exact specifications by model.

LTV-3150M-L Product details

Description

The LTV-3150-L is a 1.0A Output Current Gate Drive Optocoupler, capable of driving most 1200V/50A IGBT/MOSFET.

Features

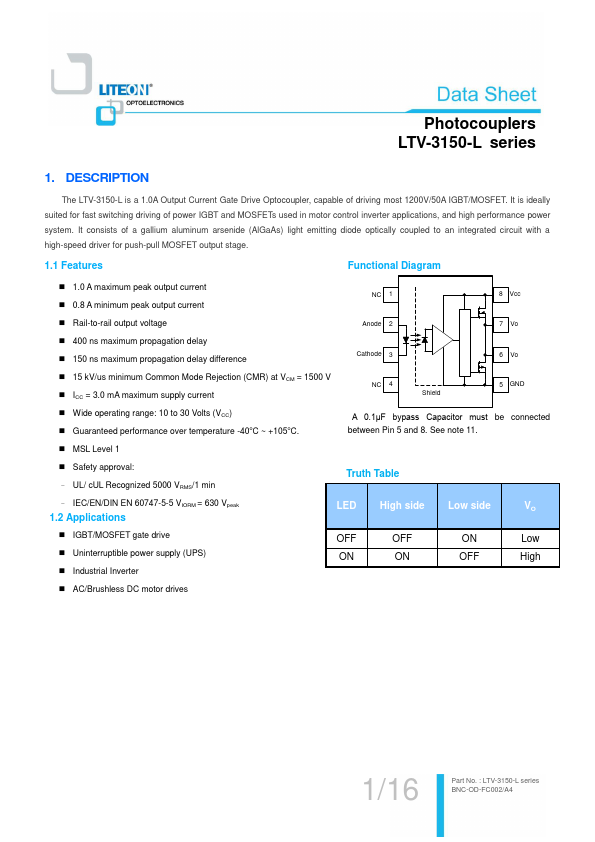

Functional Diagram.
1.0 A maximum peak output current.
0.8 A minimum peak output current NC 1 8 Vcc.
Rail-to-rail output voltage Anode 2 7 Vo.
400 ns maximum propagation delay.
150 ns maximum propagation delay difference Cathode 3 6 Vo.
15 kV/us minimum Common Mode Rejection (CMR) at VCM = 1500 V.
ICC = 3.0 mA maximum supply current NC 4 Shield 5 GND.
Wide operating range: 10 to 30 Volts (VCC).
Guaranteed performance over temperature -4.
