Description

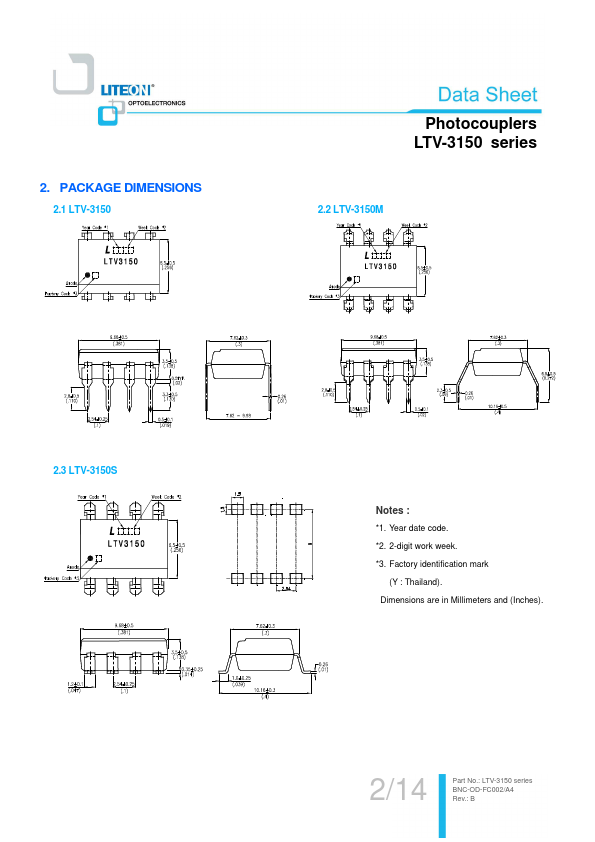

The LTV-3150 optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system.
Features

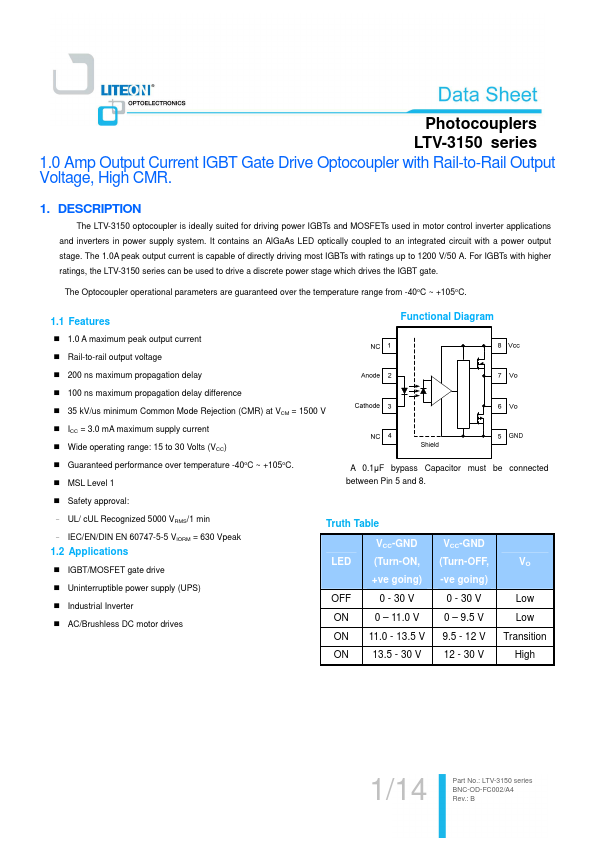

- Functional Diagram
1.0 A maximum peak output current
Rail-to-rail output voltage
200 ns maximum propagation delay
100 ns maximum propagation delay difference
35 kV/us minimum Common Mode Rejection (CMR) at VCM = 1500 V
ICC = 3.0 mA maximum supply current
Wide operating range: 15 to 30 Volts (VCC) Guaranteed performance over temperature -40oC ~ +105oC. MSL Level 1
A 0.1μF bypass Capacitor must be connected between Pin 5 and 8.
Safety approval:.
- UL/ cUL Recognized 5000 VRMS/1 m.
