LTV-3150S, LTV-3150 Photocoupler

LITE-ON

Description

Photocoupler Product Data Sheet LTV-3150 series Spec No.:DS70-2012-0059 Effective Date: 06/23/2017 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 LI.
The LTV-3150 optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supp.

📥 Download Datasheet

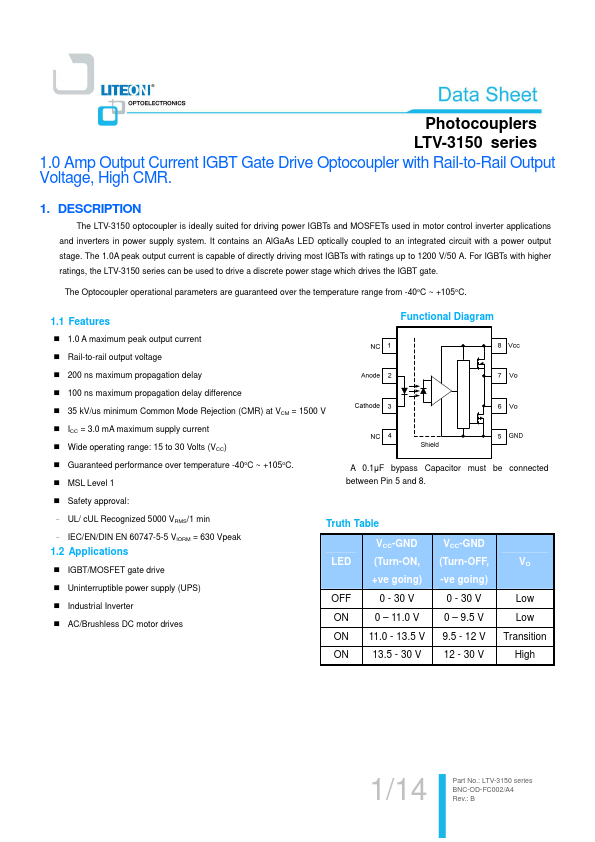

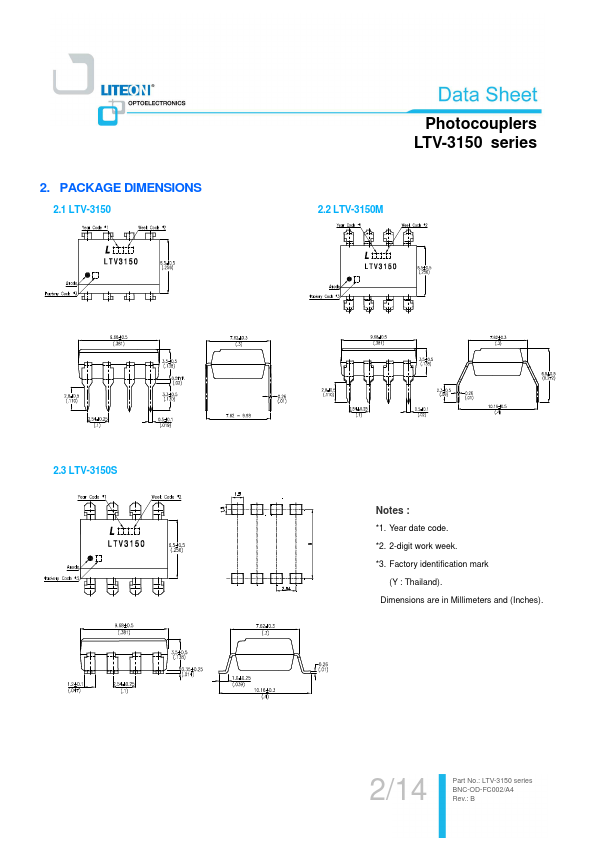

LTV-3150S Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-3150S, LTV-3150. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTV-3150S, LTV-3150
Manufacturer: LITE-ON
File Size: 456.03 KB
Datasheet: LTV-3150-LITEON.pdf
Description: Photocoupler
Note: This datasheet PDF includes multiple part numbers: LTV-3150S, LTV-3150.
Please refer to the document for exact specifications by model.

Features

* Functional Diagram 1.0 A maximum peak output current Rail-to-rail output voltage 200 ns maximum propagation delay 100 ns maximum propagation delay difference 35 kV/us minimum Common Mode Rejection (CMR) at VCM = 1500 V ICC = 3.0 mA maximum supply current Wide operating range: 15 to 30 Volts
