S-LESD3Z5.0CMT1G - Transient Voltage Suppressors

LRC

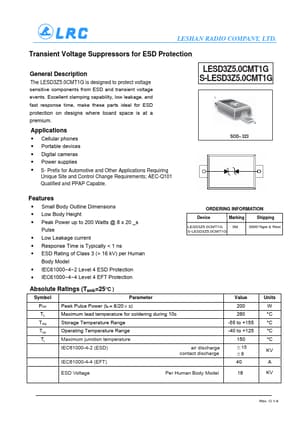

S-LESD3Z5.0CMT1G Datasheet Preview — Preview of S-LESD3Z5.0CMT1G PDF

Datasheet Details

Part number	S-LESD3Z5.0CMT1G
Manufacturer	LRC
File Size	272.62 KB
Description	Transient Voltage Suppressors
Datasheet	S-LESD3Z5.0CMT1G-LeshanRadioCompany.pdf

S-LESD3Z5.0CMT1G Product details

Description

The LESD3Z5.0CMT1G is designed to protect voltage sensitive components from ESD and transient voltage events. Cellular phones Portable devices Digital cameras Power supplies S- Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-

Features

Small Body Outline Dimensions.
Low Body Height.
Peak Power up to 200 Watts @ 8 x 20 _s Pulse.
Low Leakage current.
Response Time is Typically < 1 ns.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
IEC61000.
4.
2 Level 4 ESD Protection.
IEC61000.
4.
4 Level 4 EFT Protection.
