S-LESD3Z5.0T1G Datasheet - LRC

Transient Voltage Suppressors

S-LESD3Z5.0T1G Features

* z Small Body Outline Dimensions z 250 Watts peak pulse power (tp = 8/20μs) z Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20μs) z Small package for use in portable electronics z Suitable repla

S-LESD3Z5.0T1G General Description

The LESD3Z5.0T1G Series is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Applications Cellular Phone .

S-LESD3Z5.0T1G Datasheet (668.92 KB)

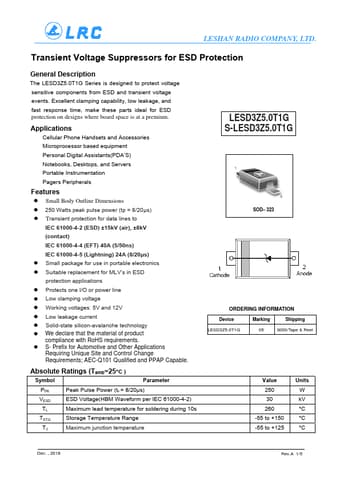

Preview of S-LESD3Z5.0T1G PDF

Datasheet Details

Part number:

S-LESD3Z5.0T1G

Manufacturer:

LRC

File Size:

668.92 KB

Description:

Transient voltage suppressors.
