S-LESD8LF5.0N3T5G Datasheet - LRC

S-LESD8LF5.0N3T5G ESD Protection Diodes

LESHAN RADIO COMPANY, LTD. LESD8LF5.0N3T5G 2-Line ESD protection ESD Protection Diodes with Ultra Low Capacitance LESD8LF5.0N3T5G S-LESD8LF5.0N3T5G The ESD8L is designed to protect voltage sensitive components that require ultra low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capa.

S-LESD8LF5.0N3T5G Features

* Ultra Low Capacitance 0.8 pF

* Low Clamping Voltage

* Small Body Outline Dimensions: 0.039″ x 0.024″ (1.00 mm x 0.60 mm)

* Low Body Height: 0.020″ (0.5 mm)

* Stand

* off Voltage: 5 V

* Low Leakage

* Response Time is Typically < 1.0 ns

S-LESD8LF5.0N3T5G-LRC.pdf

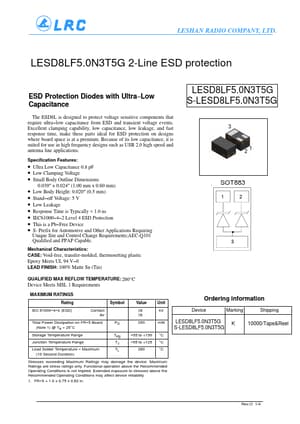

Preview of S-LESD8LF5.0N3T5G PDF
S-LESD8LF5.0N3T5G Datasheet Preview Page 2 S-LESD8LF5.0N3T5G Datasheet Preview Page 3

Datasheet Details

Part number:

S-LESD8LF5.0N3T5G

Manufacturer:

LRC

File Size:

173.62 KB

Description:

Esd protection diodes.
