S-LESD8LH5.0CT5G Datasheet - LRC

S-LESD8LH5.0CT5G Transient Voltage Suppressors

LESHAN RADIO COMPANY, LTD. LESD8LH5.0CT5G Transient Voltage Suppressors ESD Protection Diodes with Ultra Low Capacitance LESD8LH5.0CT5G S-LESD8LH5.0CT5G The ESD8L is designed to protect voltage sensitive components that require ultra low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low.

S-LESD8LH5.0CT5G Features

* Ultra Low Capacitance 3 pF

* Low Clamping Voltage

* Small Body Outline Dimensions: 0.039″ x 0.024″ (1.00 mm x 0.60 mm)

* Low Body Height: 0.020″ (0.5 mm)

* Stand

* off Voltage: 5 V

* Low Leakage

* Response Time is Typically < 1.0 ns

S-LESD8LH5.0CT5G-LRC.pdf

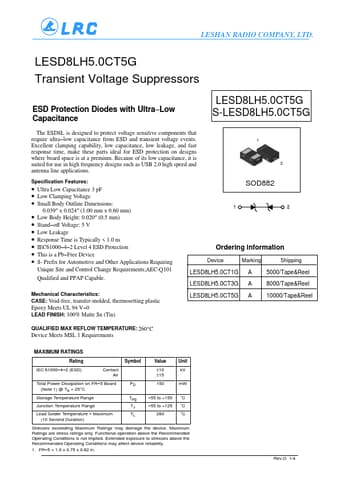

Preview of S-LESD8LH5.0CT5G PDF
S-LESD8LH5.0CT5G Datasheet Preview Page 2 S-LESD8LH5.0CT5G Datasheet Preview Page 3

Datasheet Details

Part number:

S-LESD8LH5.0CT5G

Manufacturer:

LRC

File Size:

208.20 KB

Description:

Transient voltage suppressors.
