S-LNTK3043NT5G Power MOSFET

S-LNTK3043NT5G Description

LESHAN RADIO COMPANY, LTD.Power MOSFET 20 V, 285 mA, N *Channel with ESD Protection, SOT *723 .

S-LNTK3043NT5G Features

* Enables High Density PCB Manufacturing
* 44% Smaller Footprint than SC
* 89 and 38% Thinner than SC
* 89
* Low Voltage Drive Makes this Device Ideal for Portable Equipment
* Low Threshold Levels, VGS(TH) < 1.3 V
* Low Profile (< 0.5 mm) Allows It

S-LNTK3043NT5G Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. Applications
* Interfacing, Switching
* High Speed Switching
* Cellular Phones, PDAs MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Parameter Symbol Value Unit Drain

📥 Download Datasheet

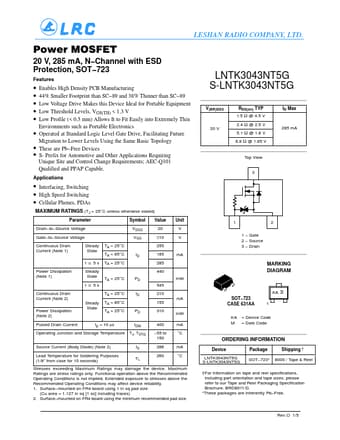

Preview of S-LNTK3043NT5G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-LNTK3043NT5G
Manufacturer
LRC
File Size
158.14 KB
Datasheet
S-LNTK3043NT5G-LRC.pdf
Description
Power MOSFET
