S-LNTR4003NLT1G Small Signal MOSFET

S-LNTR4003NLT1G Description

LESHAN RADIO COMPANY, LTD.Small Signal MOSFET 30 V, 0.56 A, Single, N *Channel, Gate ESD Protection, SOT-23 .

S-LNTR4003NLT1G Features

* Low Gate Voltage Threshold(Vgs(th))to Facilitate Drive Circuit Design
* Low Gate Charge for Fast Switching
* ESD Protected Gate
* Minimum Breakdown Voltage Rating of 30 V
* We declare that the material of product is ROHS compliant and halogen free.

S-LNTR4003NLT1G Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. Applications
* Level Shifters
* Level Switches
* Low Side Load Switches
* Portable Applications LNTR4003NLT1G S-LNTR4003NLT1G 3 1 2 SOT-23 Drain 3 MAXIMUM RATINGS (TJ = 25°C

📥 Download Datasheet

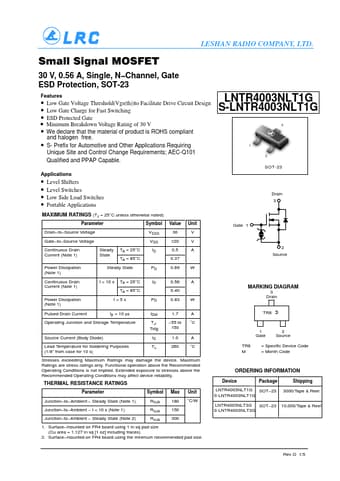

Preview of S-LNTR4003NLT1G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-LNTR4003NLT1G
Manufacturer
LRC
File Size
233.46 KB
Datasheet
S-LNTR4003NLT1G-LRC.pdf
Description
Small Signal MOSFET
