S-LNTS4409NWT1G Small Signal MOSFET

S-LNTS4409NWT1G Description

LESHAN RADIO COMPANY, LTD.Small Signal MOSFET 25 V, 0.75 A, Single, N *Channel, ESD Protection, SC *70/SOT *323 .

S-LNTS4409NWT1G Features

* Advance Planar Technology for Fast Switching, Low RDS(on)
* Higher Efficiency Extending Battery Life
* This is a Pb
* Free Device

S-LNTS4409NWT1G Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. Applications
* Boost and Buck Converter
* Load Switch
* Battery Protection MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Rating Symbol Value Unit Drain
* to
* Sour

📥 Download Datasheet

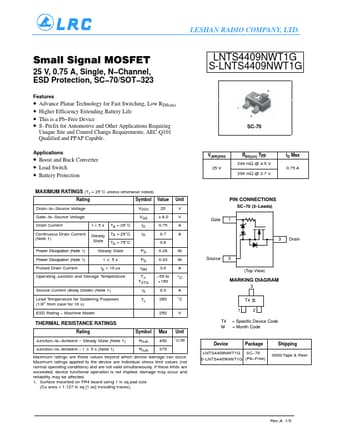

Preview of S-LNTS4409NWT1G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-LNTS4409NWT1G
Manufacturer
LRC
File Size
204.78 KB
Datasheet
S-LNTS4409NWT1G-LRC.pdf
Description
Small Signal MOSFET
