S-LNTA7002NT1G Small Signal MOSFET

S-LNTA7002NT1G Description

LESHAN RADIO COMPANY, LTD.Small Signal MOSFET 30 V, 154 mA, Single, N *Channel, Gate ESD Protection, SC *89 .

S-LNTA7002NT1G Features

* Low Gate Charge for Fast Switching
* Small 1.6 X 1.6 mm Footprint
* ESD Protected Gate
* We declare that the material of product is ROHS compliant and halogen free.
* ESDD PPrrootteecctteedd:2:105000VV
* ES-SPDrePfirxotfeocrteAdu:t1o5m0o0tVive and Ot

S-LNTA7002NT1G Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. Applications
* Power Management Load Switch
* Level Shift
* Portable Applications such as Cell Phones, Media Players, Digital Cameras, PDA’s, Video Games, Hand Held Computers, etc. MA

📥 Download Datasheet

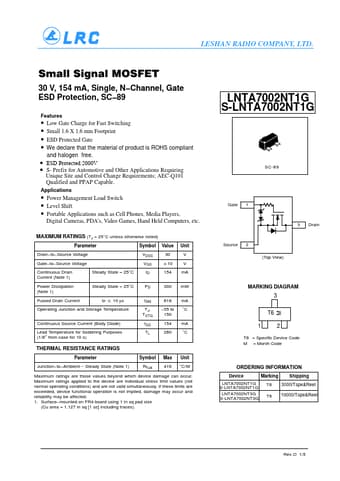

Preview of S-LNTA7002NT1G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-LNTA7002NT1G
Manufacturer
LRC
File Size
397.38 KB
Datasheet
S-LNTA7002NT1G-LRC.pdf
Description
Small Signal MOSFET
