LS7166 - 24-BIT QUADRATURE COUNTER

Datasheet Summary

Description

The LS7166 is a CMOS, 24-bit counter that can be programmed to operate in several different modes.

The operating mode is set up by writing control words into internal control registers (see Figure 8).

Features

  • Programmable modes are: Up/Down, Binary, BCD, 24 Hour Clock, Divide-by-N, x1 or x2 or x4 Quadrature and Single-Cycle.
  • DC to 25MHz Count Frequency.
  • 8-Bit I/O Bus for uP Communication and Control.
  • 24-Bit comparator for pre-set count comparison.
  • Readable status register.
  • Input/Output TTL and CMOS compatible.
  • 3V to 5.5V operation (VDD - VSS).
  • LS7166 (DIP); LS7166-S (SOIC); LS7166-TS24 (24-Pin TSSOP) - See Figure 1 GENER.

📥 Download Datasheet

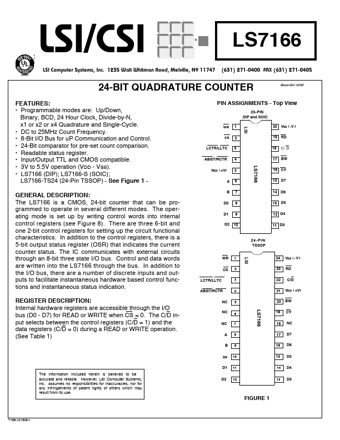

Datasheet preview – LS7166

Datasheet Details

Part number LS7166
Manufacturer LSI Computer Systems
File Size 236.15 KB
Description 24-BIT QUADRATURE COUNTER
Datasheet download datasheet LS7166 Datasheet
Additional preview pages of the LS7166 datasheet.

📁 Similar Datasheet

  • LS7183 - Encoder to Counter Interface Chips (US Digital)
  • LS700AT9001 - TFT LCD (Chi Mei)
  • LS7055 - 6 DECADE PREDETERMINING UP - DOWN COUNTER (LSI)
  • LS7056 - 6 DECADE PREDETERMINING UP - DOWN COUNTER (LSI)
  • LS7060C - (LS7060C / LS7061C) 32 BIT BINARY UP COUNTER (LSI)
  • LS7061C - (LS7060C / LS7061C) 32 BIT BINARY UP COUNTER (LSI)
  • LS7082N - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7082N1 - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7083N - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7083NS-14 - QUADRATURE CLOCK CONVERTER (LSI)
Other Datasheets by LSI Computer Systems
  • LS7100 - BCD TO 7-SEGMENT LATCH/DECODER/DRIVER for liquid crystal(dynamic scattering)displays
  • LS7183 - QUADRATURE CLOCK CONVERTER
  • LS7184 - QUADRATURE CLOCK CONVERTER
  • LS7030 - 8 DECADE MULTIPLEXED COUNTER
  • LS7031 - 6 DECADE MOS UP COUNTER WITH 8 DECADE LATCH AND MULTIPLEXER
  • LS7060 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS
  • LS7061 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS
  • LS7062 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS

Full PDF Text Transcription

Click to expand full text
LSI/CSI LS7166 U® L LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 (631) 271-0400 FAX (631) 271-0405 A3800 24-BIT QUADRATURE COUNTER December 2008 FEATURES: • Programmable modes are: Up/Down, Binary, BCD, 24 Hour Clock, Divide-by-N, x1 or x2 or x4 Quadrature and Single-Cycle. • DC to 25MHz Count Frequency. • 8-Bit I/O Bus for uP Communication and Control. • 24-Bit comparator for pre-set count comparison. • Readable status register. • Input/Output TTL and CMOS compatible. • 3V to 5.5V operation (VDD - VSS). • LS7166 (DIP); LS7166-S (SOIC); LS7166-TS24 (24-Pin TSSOP) - See Figure 1 GENERAL DESCRIPTION: The LS7166 is a CMOS, 24-bit counter that can be programmed to operate in several different modes.
