LS7184 - QUADRATURE CLOCK CONVERTER

Datasheet Summary

Description

The LS7183 and LS7184 are monolithic CMOS silicon gate quadrature clock converters.

Features

  • x1, x2 and x4 resolution.
  • Programmable output pulse width (200ns to 140µs).
  • Excellent regulation of output pulse width.
  • TTL and low voltage CMOS compatible I/Os.
  • +3V to +5.5V operation (VDD-VSS).
  • LS7183, LS7184 (DIP) LS7183-S, LS7184-S (SOIC) - See Figure 1.

📥 Download Datasheet

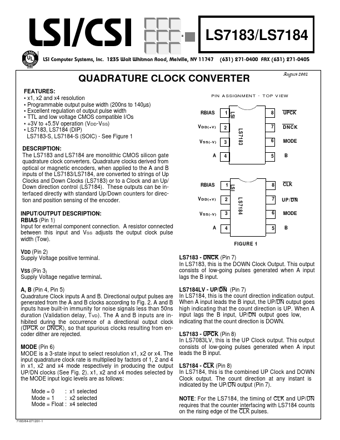

Datasheet preview – LS7184

Datasheet Details

Part number LS7184
Manufacturer LSI Computer Systems
File Size 38.86 KB
Description QUADRATURE CLOCK CONVERTER
Datasheet download datasheet LS7184 Datasheet
Additional preview pages of the LS7184 datasheet.

📁 Similar Datasheet

  • LS7183 - Encoder to Counter Interface Chips (US Digital)
  • LS700AT9001 - TFT LCD (Chi Mei)
  • LS7055 - 6 DECADE PREDETERMINING UP - DOWN COUNTER (LSI)
  • LS7056 - 6 DECADE PREDETERMINING UP - DOWN COUNTER (LSI)
  • LS7060C - (LS7060C / LS7061C) 32 BIT BINARY UP COUNTER (LSI)
  • LS7061C - (LS7060C / LS7061C) 32 BIT BINARY UP COUNTER (LSI)
  • LS7082N - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7082N1 - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7083N - QUADRATURE CLOCK CONVERTER (LSI)
  • LS7083NS-14 - QUADRATURE CLOCK CONVERTER (LSI)
Other Datasheets by LSI Computer Systems
  • LS7183 - QUADRATURE CLOCK CONVERTER
  • LS7100 - BCD TO 7-SEGMENT LATCH/DECODER/DRIVER for liquid crystal(dynamic scattering)displays
  • LS7166 - 24-BIT QUADRATURE COUNTER
  • LS7030 - 8 DECADE MULTIPLEXED COUNTER
  • LS7031 - 6 DECADE MOS UP COUNTER WITH 8 DECADE LATCH AND MULTIPLEXER
  • LS7060 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS
  • LS7061 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS
  • LS7062 - 32 BIT/DUAL 16 BIT BINARY UP COUNTER WITH BYTE MULTIPLEXED THREE-STATE OUTPUTS

Full PDF Text Transcription

Click to expand full text
LSI/CSI UL ® LS7183/LS7184 (631) 271-0400 FAX (631) 271-0405 August 2001 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A3800 QUADRATURE CLOCK CONVERTER FEATURES: • x1, x2 and x4 resolution • Programmable output pulse width (200ns to 140µs) • Excellent regulation of output pulse width • TTL and low voltage CMOS compatible I/Os • +3V to +5.5V operation (VDD-VSS) • LS7183, LS7184 (DIP) LS7183-S, LS7184-S (SOIC) - See Figure 1 DESCRIPTION: The LS7183 and LS7184 are monolithic CMOS silicon gate quadrature clock converters. Quadrature clocks derived from optical or magnetic encoders, when applied to the A and B inputs of the LS7183/LS7184, are converted to strings of Up Clocks and Down Clocks (LS7183) or to a Clock and an Up/ Down direction control (LS7184).
