LWH150G1201 IGBT

LWH150G1201 Description

LWH150G1201 SUSPM™ 1200V 150A 2-Pack IGBT Module .
Pin Number 1 2 3 4 5 6 7 Pin Name C2E1 E2 C1 G1 E1 G2 E2 Pin Description Output Neg.

LWH150G1201 Features

* Soft Punch Through (SPT+) Technology - Low Loss - Highly rugged SPT+ desgin
* Free Wheeling Diodes with soft reverse recovery

LWH150G1201 Applications

* Welder / Power Supply
* UPS / Inverter
* Industrial Motor Drive Absolute Maximum Ratings TC = 25°C unless otherwise noted Item IGBT Diode Module Symbol VCES VGES IC ICM TSC Tj PD VRRM IF IFRM Tj Tstg Viso Mt MS W Conditions @Tj= 150 °C, TC = 25 °C, Continuous @Tj= 150 °

📥 Download Datasheet

Preview of LWH150G1201 PDF

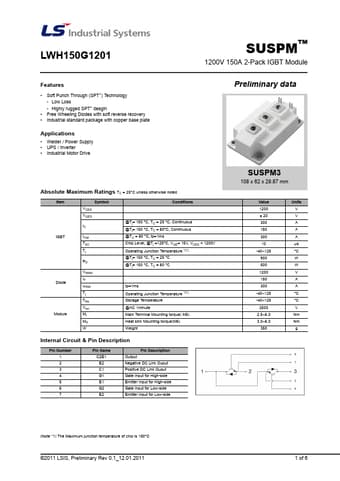

datasheet Preview Page 2 datasheet Preview Page 3
