LWH200G1202, IGBT

LWH200G1202 SUSPM™ 1200V 200A 2-Pack IGBT Module .

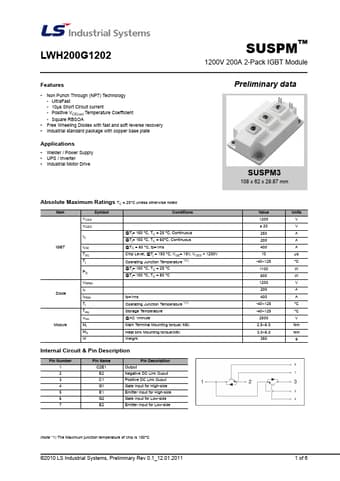

datasheet Preview Page 1 from Datasheet4u.com

LWH200G1202-LSIS.pdf

LWH200G1202 Datasheet Preview — Preview of LWH200G1202 PDF

Datasheet Details

Part number:

LWH200G1202

Manufacturer:

LSIS

File Size:

647.32 KB

Description:

IGBT

Features

* Non Punch Through (NPT) Technology - UltraFast - 10μs Short Circuit current - Positive VCE(on) Temperature Coefficient - Square RBSOA
* Free Wheeling Diodes with fast and soft reverse recovery

Applications

* Welder / Power Supply
* UPS / Inverter
* Industrial Motor Drive Preliminary data SUSPM3 108 x 62 x 29.87 mm Absolute Maximum Ratings TC = 25°C unless otherwise noted Item IGBT Diode Module Symbol VCES VGES IC ICM TSC Tj PD VRRM IF IFRM Tj Tstg Viso Mt MS W Conditions @
