LWH200G1201 IGBT

LWH200G1201 Description

LWH200G1201 .
Pin Number 1 2 3 4 5 6 7.

LWH200G1201 Features

* Soft Punch Through (SPT+) Technology - Low loss - Highly rugged SPT+ design
* Free wheeling diodes with soft reverse recovery

LWH200G1201 Applications

* Welder / Power Supply
* UPS / Inverter
* Industrial Motor Driver SUSPM™ 1200V 200A 2-Pack IGBT Module Preliminary data SUSPM3 108 x 62 x 29.9 mm Absolute Maximum Ratings TC = 25°C unless otherwise noted Item IGBT Diode Module Symbol VCES VGES IC ICM TSC Tj PD VRRM IF IF

📥 Download Datasheet

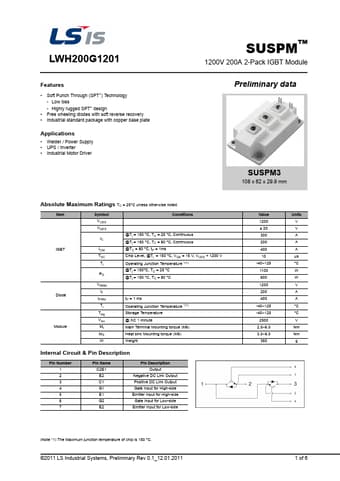

LWH200G1201 Datasheet Preview — Preview of LWH200G1201 PDF

Datasheet Details

Part number: LWH200G1201
Manufacturer: LSIS
File Size: 724.39 KB
Datasheet: LWH200G1201-LSIS.pdf
Description: IGBT
