LWH150G1203 IGBT

LWH150G1203 Description

LWH150G1203 SUSPM™ 1200V 150A 2-Pack IGBT Module .

LWH150G1203 Features

* Trench & field stop technology - Low saturation voltage - Low turn-off losses - Short tail current - Positive temperature coefficient - Easy paralleling
* Free wheeling diodes with fast and soft reverse recovery
* Industrial standard package with copper base plate

LWH150G1203 Applications

* Welder / Power Supply
* UPS / Inverter
* Industrial Motor Driver Preliminary data SUSPM3 108 x 62 x 29.9 mm Absolute Maximum Ratings TC = 25°C unless otherwise noted Item IGBT Diode Module Symbol VCES VGES IC ICM TSC Tj PD VRRM IF IFRM Tj Tstg Viso Mt MS W Conditions @

📥 Download Datasheet

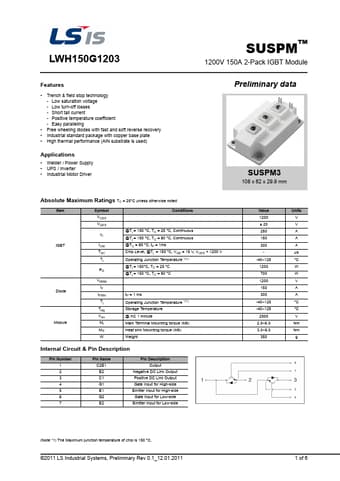

Preview of LWH150G1203 PDF
