LWH200G1203 IGBT

LWH200G1203 Description

LWH200G1203 SUSPM™ 1200V 200A 2-Pack IGBT Module .

LWH200G1203 Features

* Trench & Field Stop technology - Low Saturation Voltage - Low Turn-Off Losses - Short Tail Current - Positive Temperature Coefficient - High Ruggedness
* Free Wheeling Diodes with fast and soft reverse recovery
* Industrial Standard Package with copper base plate

LWH200G1203 Applications

* Welder / Power Supply
* UPS / Inverter
* Industrial Motor Drive Preliminary data SUSPM3 108 x 62 x 29.9 mm Absolute Maximum Ratings TC = 25°C unless otherwise noted Item IGBT Diode Module Symbol VCES VGES IC ICM TSC Tj PD VRRM IF IFRM Tj Tstg Viso Mt MS W Conditions @T

📥 Download Datasheet

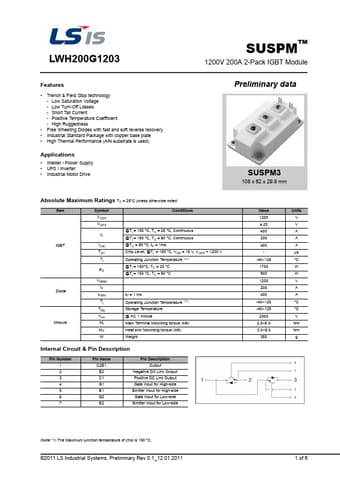

Preview of LWH200G1203 PDF
