FX816B

Photo Transistor Coupler

FX816B Features

* High isolation 5000 VRMS

* CTR flexibility available see order information

* DC input with transistor output

* Operating temperature range - 55 °C to 110 °C

* Copper Leadframe

* REACH Compliance

* MSL class 1

* Halogen free (Optional)

* Regulatory Approval

FX816B General Description

The FX816 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor detector in a plastic DIP4 package with different lead forming options. With the robust coplanar double mold structure, FX816 series provide the most stable isolat.

FX816B Datasheet (1.69 MB)

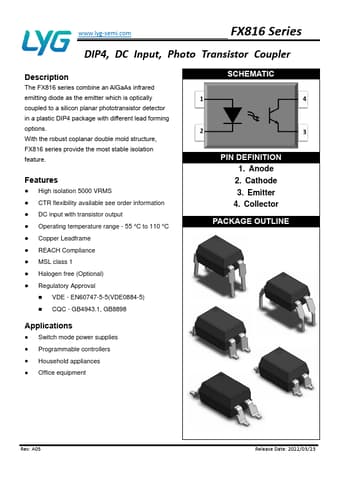

Preview of FX816B PDF

Datasheet Details

Part number:

FX816B

Manufacturer:

LYG

File Size:

1.69 MB

Description:

Photo transistor coupler.
