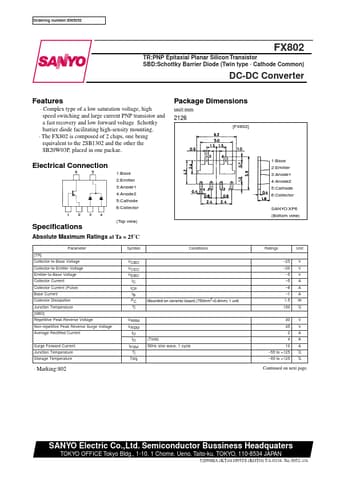

FX802 Datasheet Preview — Preview of FX802 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: FX802
Manufacturer: Sanyo Semicon Device
File Size: 126.51 KB
Datasheet: FX802_SanyoSemiconDevice.pdf
Description: DC-DC Converter

FX802 Product details

Features

Complex type of a low saturation voltage, high speed switching and large current PNP transistor and a fast recovery and low forward voltage Schottky barrier diode facilitating high-sensity mounting.
The FX802 is composed of 2 chips, one being equivalent to the 2SB1302 and the other the SB20W03P, placed in one packae. Package Dimensions unit:mm 2126 [FX802] Electrical Connection 1:Base 2:Emitter 3:Anode1 4:Anode2 5:Cathode 6:Collector (Top view) 1:Base 2:Emitter 3:Anode1 4:Anode2 5.
