Part number: FX855
Manufacturer: Sanyo Semicon Device
File Size: 135.54 KB
Datasheet: FX855_SanyoSemiconDevice.pdf
Description: DC-DC Converter Applications

FX855 Product details

Features

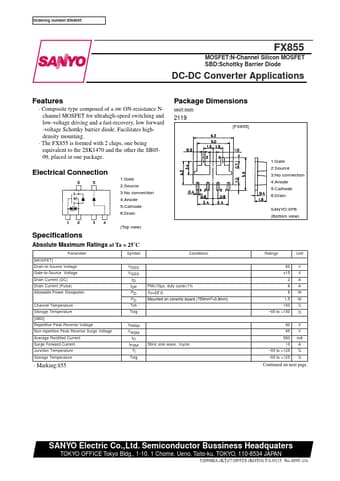

Composite type composed of a ow ON-resistance Nchannel MOSFET for ultrahigh-speed switching and low-voltage driving and a fast-recovery, low forward -voltage Schottky barrier diode. Facilitates highdensity mounting.
The FX855 is formed with 2 chips, one being equivalent to the 2SK1470 and the other the SB0509, placed in one package. Package Dimensions unit:mm 2119 [FX855] Electrical Connection 1:Gate 2:Source 3:No connection 4:Anode 5:Cathode 6:Drain (Top view) 1:Gate 2:Source 3:N.
