Part number: FX854
Manufacturer: Sanyo Semicon Device
File Size: 135.07 KB
Datasheet: FX854_SanyoSemiconDevice.pdf
Description: DC-DC Converter Applications

FX854 Product details

Features

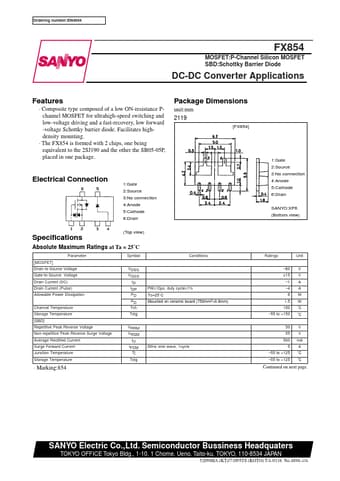

Composite type composed of a low ON-resistance Pchannel MOSFET for ultrahigh-speed switching and low-voltage driving and a fast-recovery, low forward -voltage Schottky barrier diode. Facilitates highdensity mounting.
The FX854 is formed with 2 chips, one being equivalent to the 2SJ190 and the other the SB05-05P, placed in one package. Package Dimensions unit:mm 2119 [FX854] Electrical Connection 1:Gate 2:Source 3:No connection 4:Anode 5:Cathode 6:Drain (Top view) 1:Gate 2:Source.
