FX816C Datasheet, Coupler, LYG

FX816C Features

  • Coupler
  • High isolation 5000 VRMS
  • CTR flexibility available see order information
  • DC input with transistor output
  • Operating temperature range - 55 °C to 1

PDF File Details

Part number:

FX816C

Manufacturer:

LYG

File Size:

1.69MB

Download:

📄 Datasheet

Description:

Photo transistor coupler. The FX816 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransis

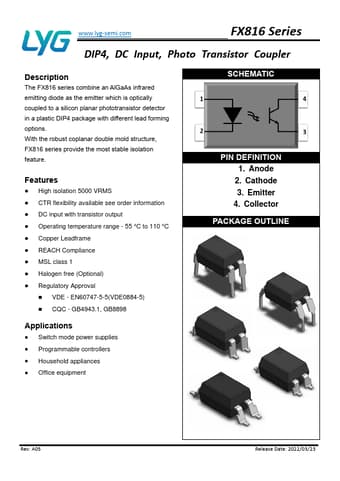

Datasheet Preview: FX816C 📥 Download PDF (1.69MB)
Page 2 of FX816C Page 3 of FX816C

FX816C Application

  • Applications
  • Switch mode power supplies
  • Programmable controllers
  • Household appliances
  • Office equipment SCHE
