2SA1320
LZG
368.87 KB
Silicon pnp transistor.

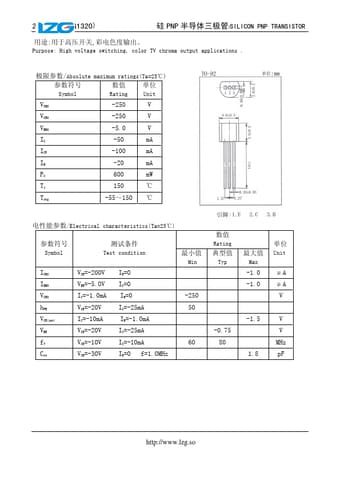

2SA1320(3CG1320)
PNP /SILICON PNP TRANSISTOR
:,。
Purpose: High voltage switching, color TV chroma output applications .
/Absolute maximum ratings(.
📁 Related Datasheet
2SA1320 - TRANSISTOR
(Toshiba Semiconductor)
2SA1320
TOSHIBA Transistor Silicon PNP Triple Diffused Type (PCT process)
2SA1320
High Voltage Switching Applications Color TV Chroma Output Applicat.
2SA1320 - Silicon PNP transistor
(BLUE ROCKET ELECTRONICS)
2SA1320
Rev.E Mar.-2016
DATA SHEET
/ Descriptions
TO-92 PNP 。Silicon PNP transistor in a TO-92 Plastic Package.
/ Features
。 High voltage.
.
