Part number:
2SA1370
Manufacturer:
LZG
File Size:
286.24 KB
Description:
Silicon pnp transistor.

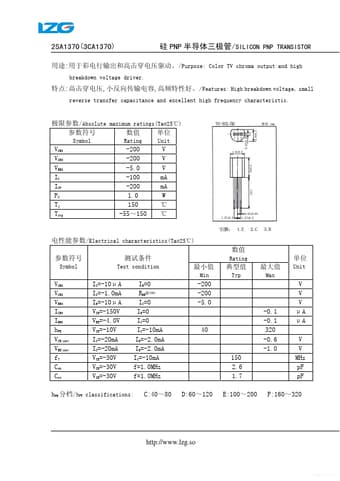

* High breakdown voltage, small reverse transfer capacitance and excellent high frequency characteristic. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC ICP PC Tj Tstg -200 -200 -5.0 -100 -200 1.0 150 -55～150 V V V mA mA W ℃ ℃ /Electrical characteristics(Ta=25℃) Symb
2SA1370
LZG
286.24 KB
Silicon pnp transistor.
