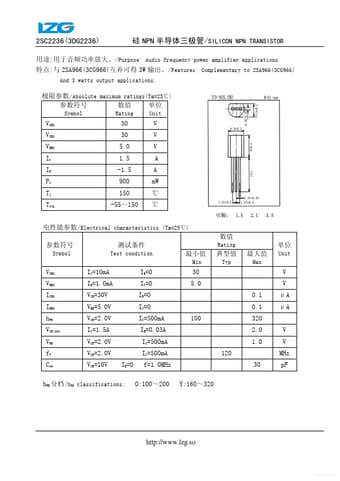

Part number:
2SC2236
Manufacturer:
LZG
File Size:
452.24 KB
Description:
Silicon npn transistor.
* Complementary to 2SA966(3CG966) And 3 watts output applications. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC IE PC Tj Tstg 30 30 5.0 1.5 -1.5 900 150 -55～150 V V V A A mW ℃ ℃ /Electrical characteristics (Ta=25℃) Symbol Test condition Rating Max Unit Min
2SC2236
LZG
452.24 KB
Silicon npn transistor.
