PESD3V3L1UL BIDIRECTIONAL TVS DIODE

PESD3V3L1UL Description

.

PESD3V3L1UL Features

* Protects one data line
* Ultra low leakage: nA level
* Operating voltage: 3.3V
* Ultra low clamping voltage
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
* IEC61000-4-5 (Lightning) 8A (8/20

PESD3V3L1UL Applications

* Cellular Handsets and Accessories
* Personal Digital Assistants
* Notebooks and Handhelds
* Portable Instrumentation
* Digital Cameras
* Peripherals
* Audio Players
* Keypads, Side Keys, LCD Displays Mechanical Characteristics
* Package: DFN1006
* Lead Finis

📥 Download Datasheet

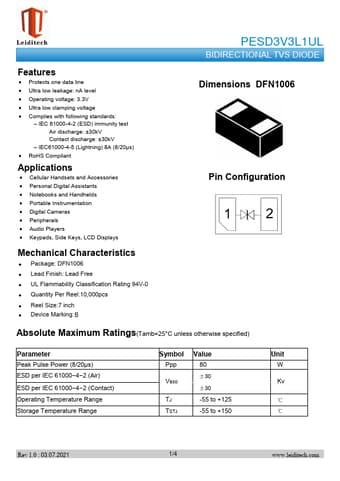

Preview of PESD3V3L1UL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PESD3V3L1UL
Manufacturer
Leiditech
File Size
2.79 MB
Datasheet
PESD3V3L1UL-Leiditech.pdf
Description
BIDIRECTIONAL TVS DIODE
