PESD3V3L2BT Datasheet, Diodes, NXP

PESD3V3L2BT Features

  • Diodes I ESD protection of two lines I Max. peak pulse power: PPP = 350 W I Low clamping voltage: VCL = 26 V I Small SMD plastic package I Ultra low leakage current: IRM < 90 nA I ESD protect

PDF File Details

Part number:

PESD3V3L2BT

Manufacturer:

NXP ↗

File Size:

172.34kb

Download:

📄 Datasheet

Description:

Low capacitance double bidirectional esd protection diodes. Low capacitance double bidirectional ElectroStatic Discharge (ESD) protection diodes in a SOT23 small Surface Mounted Device (SMD) pl

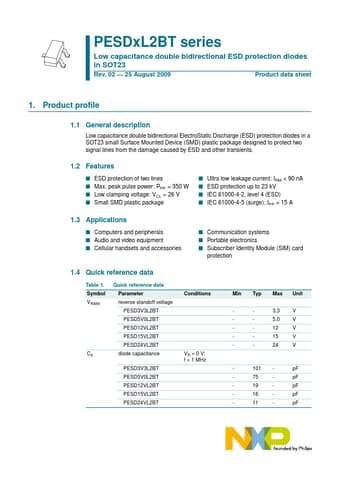

Datasheet Preview: PESD3V3L2BT 📥 Download PDF (172.34kb)
Page 2 of PESD3V3L2BT Page 3 of PESD3V3L2BT

PESD3V3L2BT Application

  • Applications I Computers and peripherals I Audio and video equipment I Cellular handsets and accessories I Communication systems I Portable electro
